R10-E2Y4-115V
lmages are for reference only.R10-E2Y4-115V
RELAY GEN PURPOSE 4PDT 3A 115V
Datasheet-
24,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 115VAC Coil Through Hole
R10-E2Y4-115V
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | R10 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 115VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 120VAC - Nom |
| Load - Max Switching | - |
| Coil Current | 12.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 86 VAC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -55°C ~ 75°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 9 kOhms |
| Base Product Number | R10-E2Y4 |
| Product Attribute |  |
 |
 |
 |

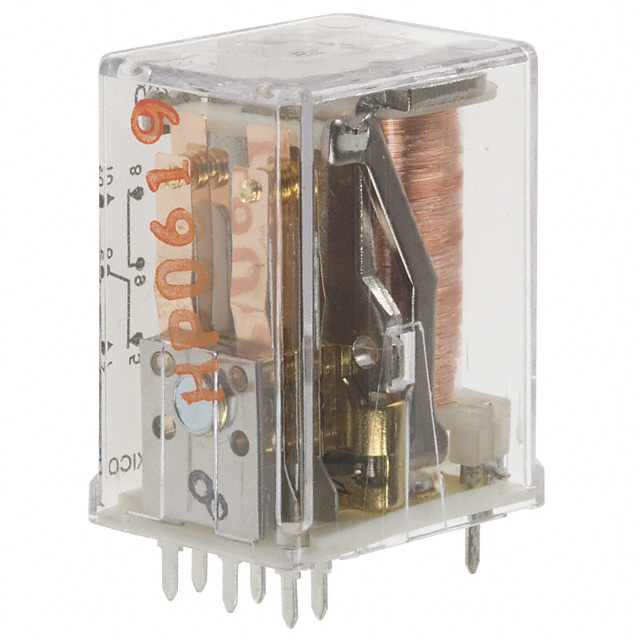

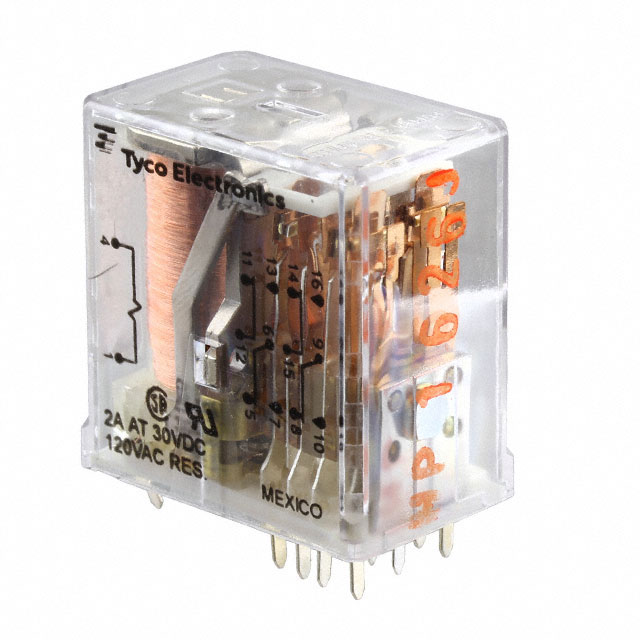

| Part Number | R10-E2Y1-JJ1.0K | R10-E2Y1-V700 | R10-E2Y2-115V | R10-E2Y2-J2.5K |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPDT 3A 5V | RELAY GEN PURPOSE SPDT 3A 24V | RELAY GEN PURPOSE DPDT 3A 115V | RELAY GEN PURPOSE DPDT 3A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Tray | Bulk |
