RL3005-25-110-12-PTF
lmages are for reference only.RL3005-25-110-12-PTF
PTC RESET FUSE 12V 180MA RADIAL
DatasheetRadial, Disc
99,365 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 12V 180 mA Ih Through Hole Radial, Disc
RL3005-25-110-12-PTF
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | PTF |
| Packaging | Bulk |
| RoHS Status | |
| Type | Ceramic |
| Voltage - Max | 12V |
| Current - Hold (Ih) (Max) | 180 mA |
| Current - Trip (It) | 120 mA |
| Current - Max | - |
| Resistance - 25°C (Typ) | 25 Ohms |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) |
| Height - Seated (Max) | 0.350" (8.89mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.250" (6.35mm) |
| Approval Agency | - |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | RL3005 |
| Product Attribute |  |
 |
 |
 |

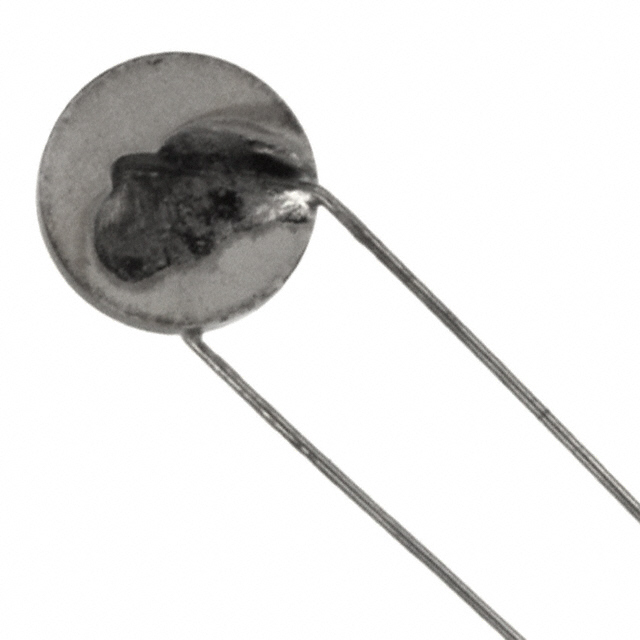

| Part Number | RL3005-25-110-12-PTO | RL3005-10-110-12-PTF | RL3005-10-110-12-PTO | RL3006-50-100-25-PTO |
| Manufacturer | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics | Amphenol Thermometrics |
| RoHS Status | RoHS non-compliant | |||
| Description | PTC RESET FUSE 12V RADIAL DISC | PTC RESET FUSE 12V 190MA RADIAL | PTC RESET FUSE 12V RADIAL DISC | PTC RESET FUSE 25V RADIAL DISC |
| Series | PTO | PTF | PTO | PTO |
| Packaging | Bulk | Bulk | Bulk | Bulk |
