RTP215LVNDX
lmages are for reference only.RTP215LVNDX
ROTARY 2 PART SENSOR
DatasheetBox with Connector
39,280 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position External Magnet, Included Connector
RTP215LVNDX
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | RTP |
| Packaging | Bulk |
| RoHS Status | |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Included |
| Linearity | ±1% |
| Resistance | 10 kOhms |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute | |
|
 |
 |
| Part Number | RTP050LVNBA | RTP180LVEBY | RTP120HVNAA | RTY120LVEAX |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||

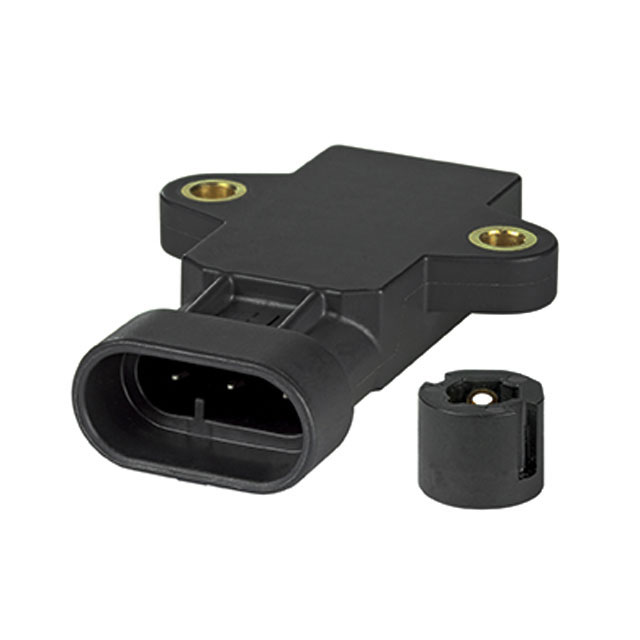

| Description | ROTARY 2 PART SENSOR,050 DEG,LOW | ROTARY TWO PIECE 180 DEG LOW VOL | SENSOR ROTARY 120DEG CONNECTOR | SENSOR ROTARY 120DEG CONNECTOR |
| Series | * | RTP | RTP | RTY |
| Packaging | Bulk | Bulk | Bulk | Bulk |
