SBPF-0750-1500-05-N
lmages are for reference only.SBPF-0750-1500-05-N
TUNABLE FILTER TYPE N JACK 750MH
DatasheetModule
98,022 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.125GHz Center Frequency Band Pass RF Filter (Radio Frequency) 750MHz Bandwidth 1dB Module
SBPF-0750-1500-05-N
| Category | Filters - RF Filters - |
| Manufacturer | Fairview Microwave |
| Series | - |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Frequency | 1.125GHz Center |
| Bandwidth | 750MHz |
| Filter Type | Band Pass |
| Ripple | - |
| Insertion Loss | 1dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Size / Dimension | 9.799" L x 5.382" W (248.90mm x 136.70mm) |
| Height (Max) | 2.752" (69.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

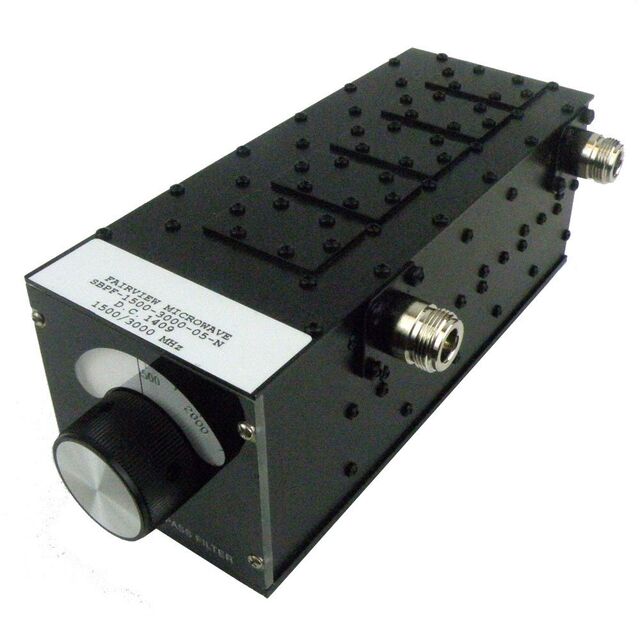

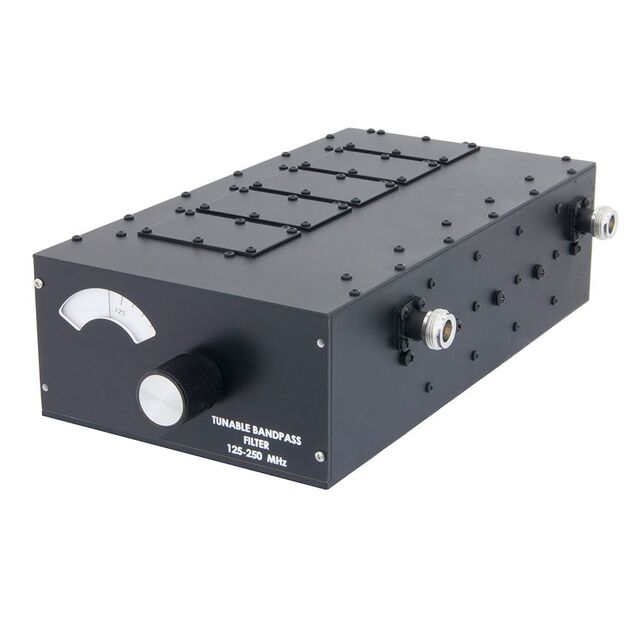

| Part Number | SBPF-0125-0250-05-N | SBPF-1000-2000-05-N | SBPF-1500-3000-05-N | BPF2012LRAGR2400L |
| Manufacturer | Fairview Microwave | Fairview Microwave | Fairview Microwave | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TUNABLE FILTER TYPE N JACK 125MH | TUNABLE FILTER TYPE N JACK 1GHZ- | TUNABLE FILTER TYPE N JACK 1.5GH | 2012 2.4GHZ BPF TYPEAG |
| Series | - | - | - | - |
| Packaging | Bag | Bag | Bag | Tape & Reel (TR) |
