SMA4F21AH

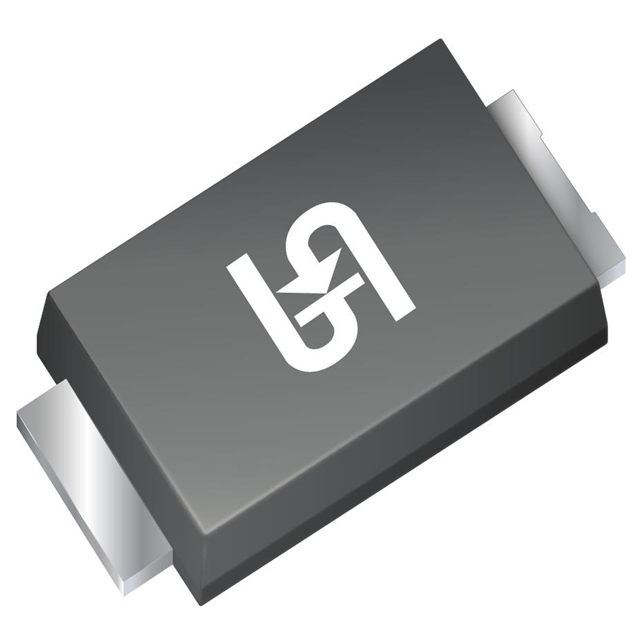

lmages are for reference only.SMA4F21AH
400W, 24.7V, 5%, UNIDIRECTIONAL,
DatasheetDO-221AC, SMA Flat Leads
44,118 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
34.1V Clamp 11.7A Ipp Tvs Diode Surface Mount Thin SMA
SMA4F21AH
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | SMA4F |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 21V |
| Voltage - Breakdown (Min) | 23.5V |
| Voltage - Clamping (Max) @ Ipp | 34.1V |
| Current - Peak Pulse (10/1000µs) | 11.7A |
| Power - Peak Pulse | 400W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | Thin SMA |
| Base Product Number | SMA4F21 |
| Unidirectional Channels | 1 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | SMA4F21AH MWG | SMA4F20A | SMA4F20AH | SMA4F20AH MWG |
| Manufacturer | Taiwan Semiconductor Corporation | STMicroelectronics | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 400W, 24.7V, 5%, UNIDIRECTIONAL, | TVS DIODE 20VWM 42.8VC SMAFLAT | 400W, 23.6V, 5%, UNIDIRECTIONAL, | 400W, 23.55V, 5%, UNIDIRECTIONAL |
| Series | Taiwan Semiconductor Corporation | STMicroelectronics | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
