SP7686ER-L/TR

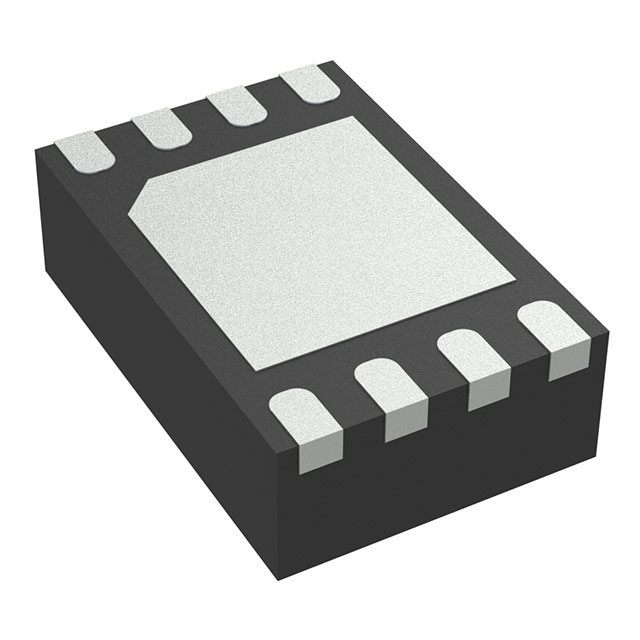

lmages are for reference only.SP7686ER-L/TR
IC LED DRVR RGLTR PWM 500MA 8DFN
Datasheet8-VFDFN Exposed Pad
47,949 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 1 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 500mA 8-DFN (2x3)
SP7686ER-L/TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | MaxLinear, Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | - |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 500mA |
| Frequency | 2.4MHz |
| Dimming | PWM |
| Applications | Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Base Product Number | SP7686 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

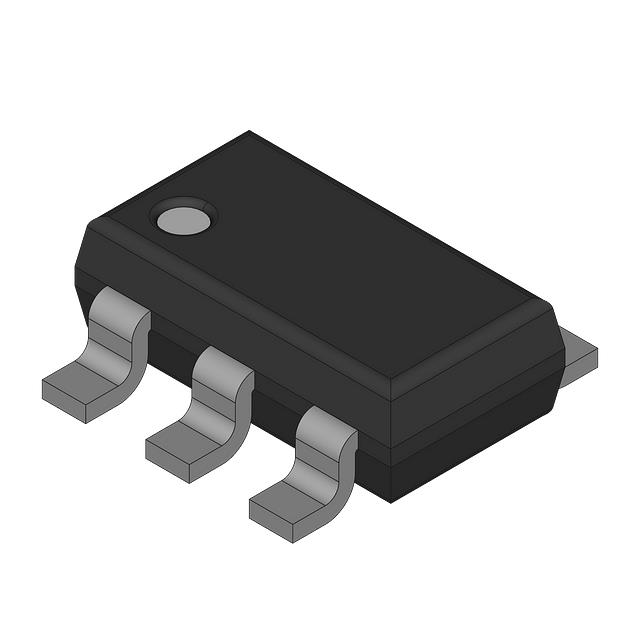

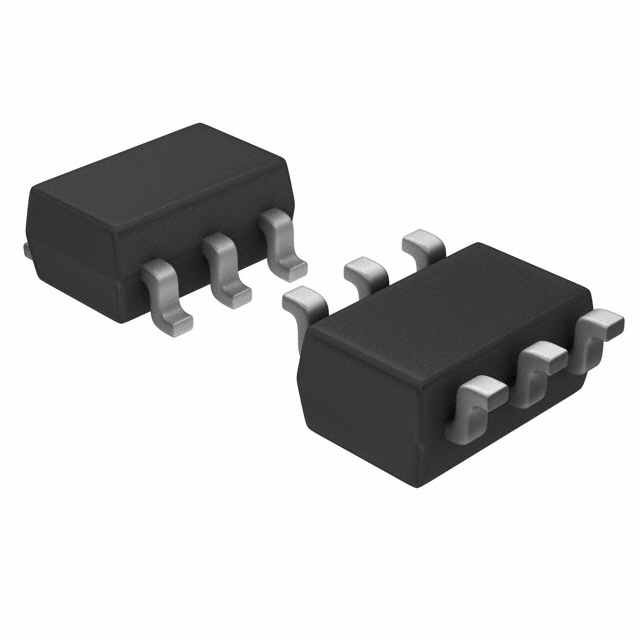

| Part Number | SP7120AEK-L/TR | SP7120BEK-L/TR | SP7121EK-F | SP7121EK-F/TR |
| Manufacturer | Sipex | MaxLinear, Inc. | MaxLinear, Inc. | MaxLinear, Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED DRIVER, 2-SEGMENT, PDSO6 | IC LED DRVR LIN PWM 15MA SOT23-6 | IC LED DRVR LIN PWM 25MA SOT23-6 | IC LED DRVR LIN PWM 25MA SOT23-6 |
| Series | SP7120 | - | - | - |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
