SPDL3225-110-2P-T
lmages are for reference only.SPDL3225-110-2P-T
CMC 11UH 300MA 2LN 500OHM SMD
DatasheetHorizontal, 4 PC Pad
27,600 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500 Ohms @ 10 MHz 300mA DCR 400mOhm
SPDL3225-110-2P-T
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Signal Transformer |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 11 µH @ 100 kHz |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Height (Max) | 0.106" (2.70mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 500 Ohms @ 10 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

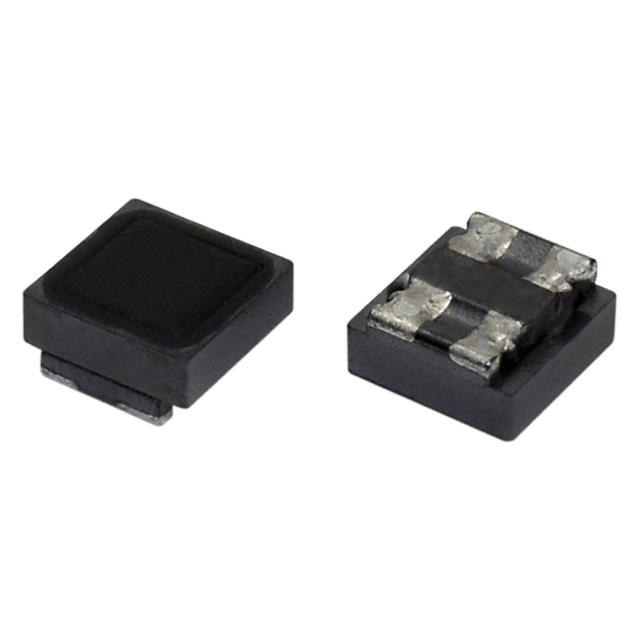

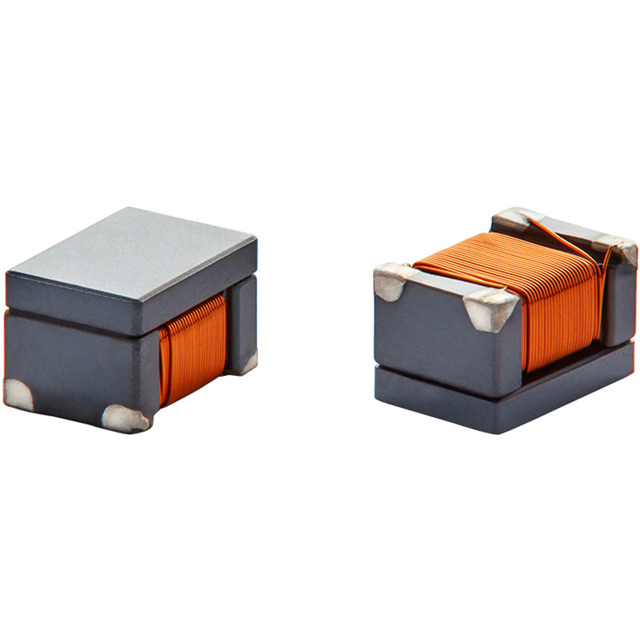

| Part Number | SPDL3225-101-2P-T | SPDL3225-220-2P-T | SPDL3225-510-2P-T | SPDL485025-350-2P-T |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100UH 150MA 2LN 5.1KOHM SMD | CMC 22UH 250MA 2LN 1.1KOHM SMD | CMC 51UH 200MA 2LN 2.6KOHM SMD | CMC 4A 2LN 350 OHM SMD |
| Series | SPDL3225 | - | - | SPDL485025 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
