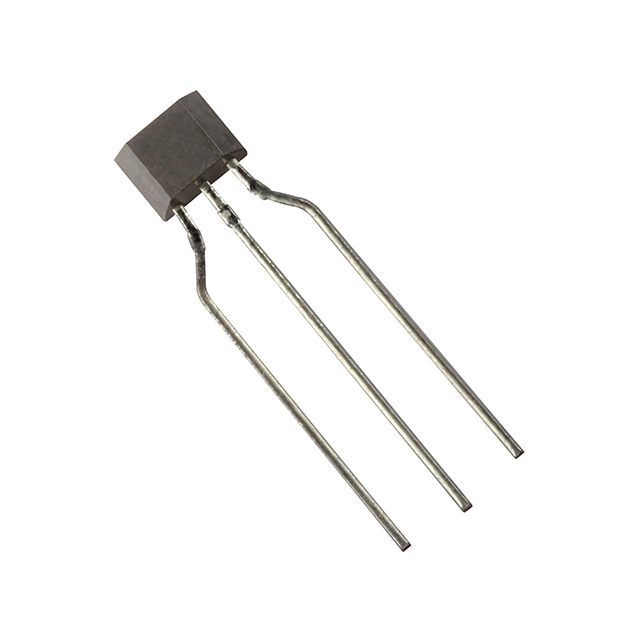

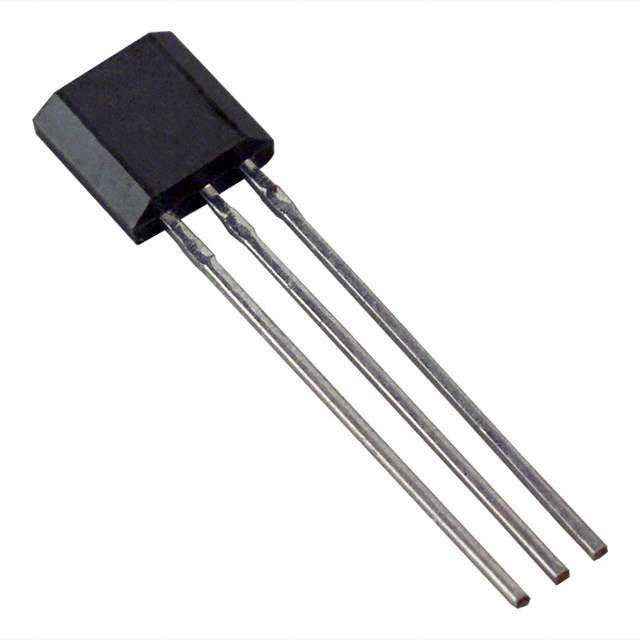

SS49E
lmages are for reference only.SS49E
SENSOR HALL ANALOG RADIAL LEAD
DatasheetTO-226-3, TO-92-3 Short Body
38,418 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Single Axis Radial Lead
SS49E
| Category | Sensors, Transducers - Magnetic Sensors - Linear-Compass ICs |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SS49E |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Technology | Hall Effect |
| Axis | Single |
| Output Type | Analog Voltage |
| Sensing Range | - |
| Voltage - Supply | 2.7V ~ 6.5V |
| Current - Supply (Max) | 10mA |
| Current - Output (Max) | 10mA |
| Resolution | - |
| Bandwidth | - |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Features | - |
| Supplier Device Package | Radial Lead |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Short Body |
| Base Product Number | SS49 |
| Product Attribute |  |
 |
 |
 |

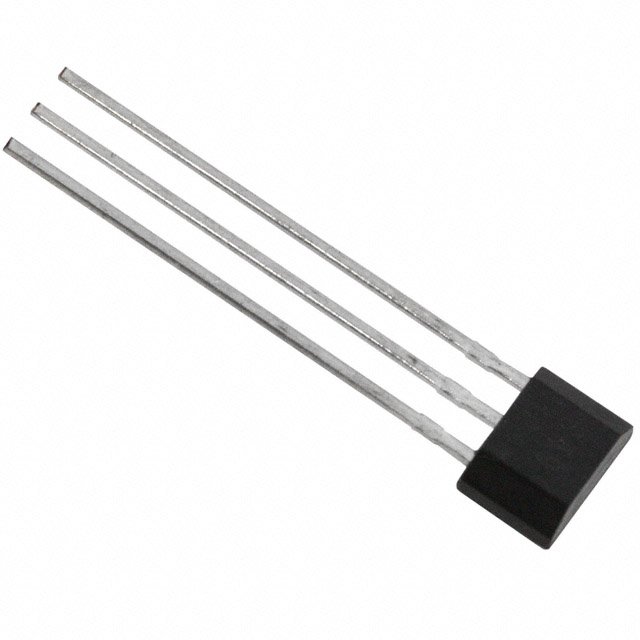

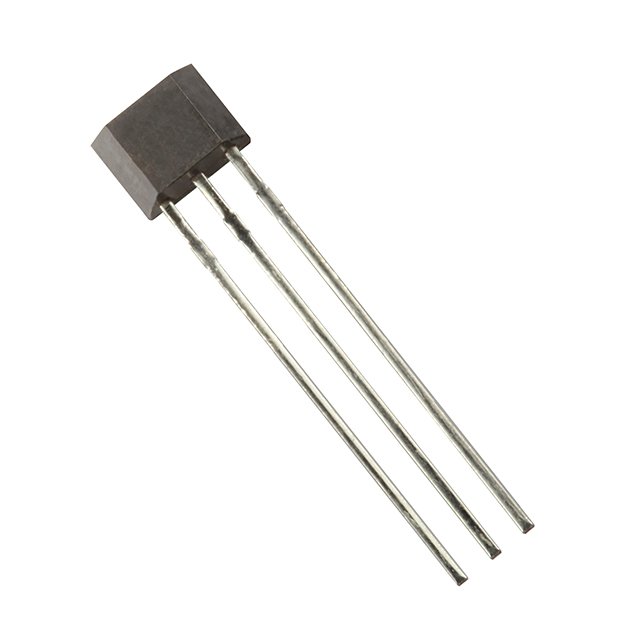

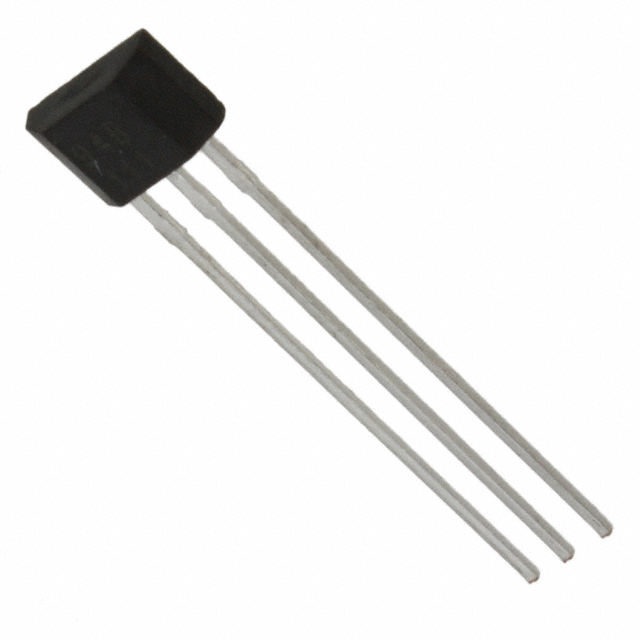

| Part Number | SS49 | SS491B | SS494B | SS494B-S |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR HALL EFFECT ANALOG 3SIP | SENSOR HALL EFFECT ANALOG TO92-3 | SENSOR HALL EFFECT ANALOG 3SIP | SOLID STATE SENSOR |
| Series | SS49 | - | SS494 | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
