SZR-MY4-N1 DC24V
lmages are for reference only.SZR-MY4-N1 DC24V
RELAY CONTROLS
Datasheet-
93,113 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
SZR-MY4-N1 DC24V
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | SZR-MY |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Load - Max Switching | - |
| Coil Current | 40.9 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | - |
| Contact Material | Silver (Ag) |
| Approval Agency | CE, CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 650 Ohms |
| Base Product Number | - |
| Product Attribute | |
|
|
 |

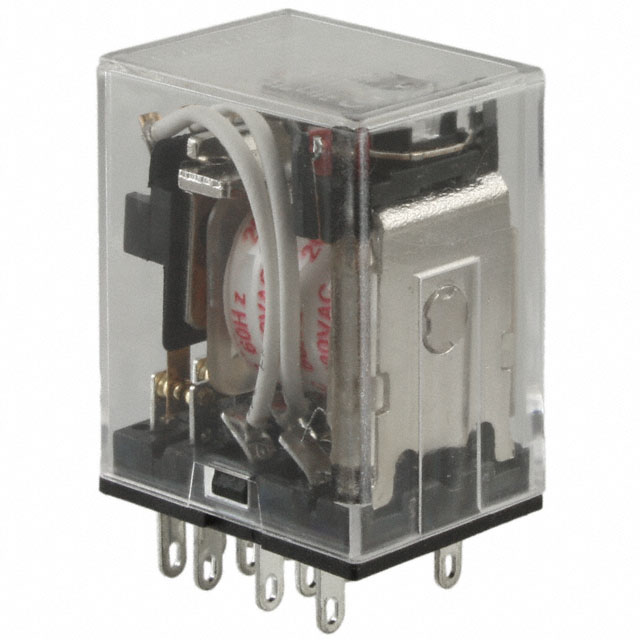

| Part Number | SZR-MY4-N1 DC48V | SZR-MY4-N1 AC24V | SZR-MY4-N1-AC110/120 | SZR-MY4-N1-AC220V |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS non-compliant | RoHS Compliant | ||
| Description | RELAY CONTROLS | RELAY CONTROLS | SZR-MY4-N1-AC110/120 | RELAY GEN PURPOSE 4PDT 3A 220V |
| Series | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
