TESD5V0L1UC RJG
lmages are for reference only.TESD5V0L1UC RJG
TVS DIODE 5VWM 15VC DFN1006L
DatasheetSOD-882
91,453 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006L
TESD5V0L1UC RJG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 2pF @ 1MHz |
| Operating Temperature | -55°C ~ 155°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Supplier Device Package | DFN1006L |
| Base Product Number | TESD5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

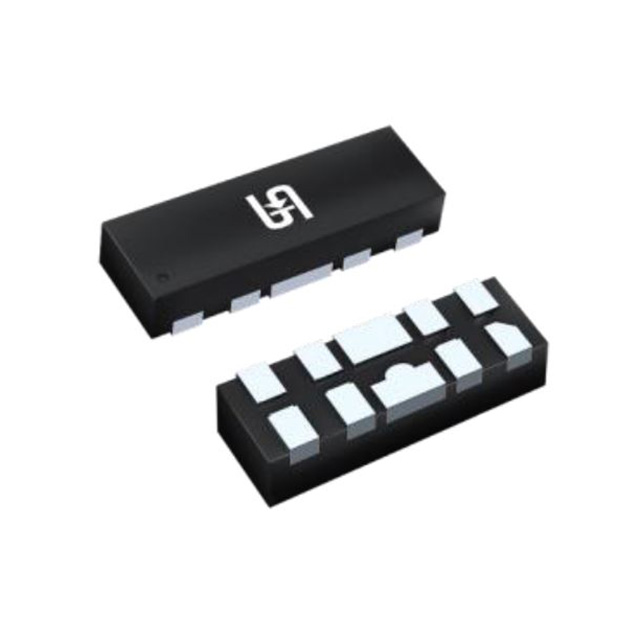

| Part Number | TESD5V0L1UC | TESD5V0V4UA | TESD5V0V4UA RDG | TESD5V0V4UCU6 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DFN1006L, 5V, 100W, 2PF, ESD PRO | 2510P10 (DSON10), 5V, 95W, 0.8PF | TVS DIODE 5VWM 19VC 2510P10 | SOT-363, 5V, 150W, 3PF, ESD PROT |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
