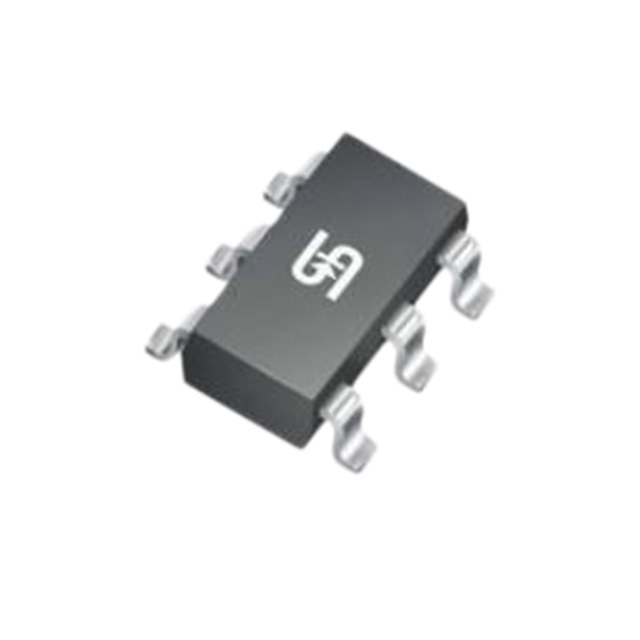

TESD5V0V4UCU6
lmages are for reference only.TESD5V0V4UCU6
SOT-363, 5V, 150W, 3PF, ESD PROT
Datasheet6-TSSOP, SC-88, SOT-363
31,339 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOT-363
TESD5V0V4UCU6
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Base Product Number | TESD5 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

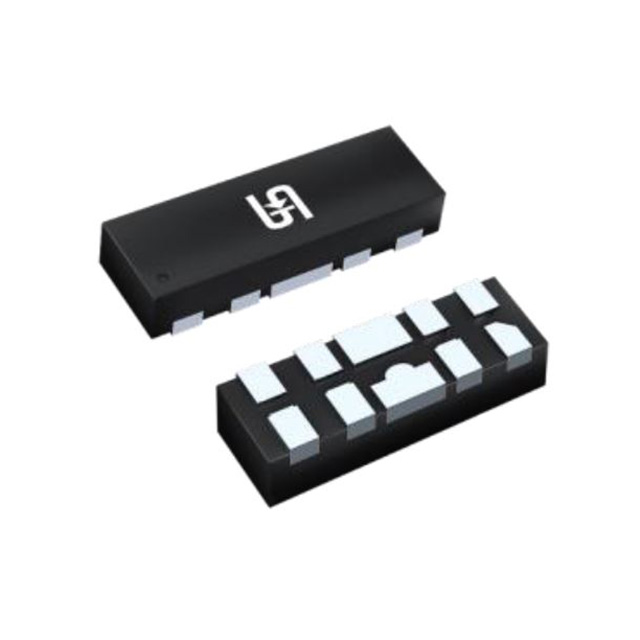

| Part Number | TESD5V0V4UCU6 RFG | TESD5V0V4UA | TESD5V0V4UA RDG | TESD5V0V4UCX6 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 25VC SOT363 | 2510P10 (DSON10), 5V, 95W, 0.8PF | TVS DIODE 5VWM 19VC 2510P10 | SOT-26, 5V, 75W, 0.6PF, ESD PROT |
| Series | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
