THA581M100AA0C

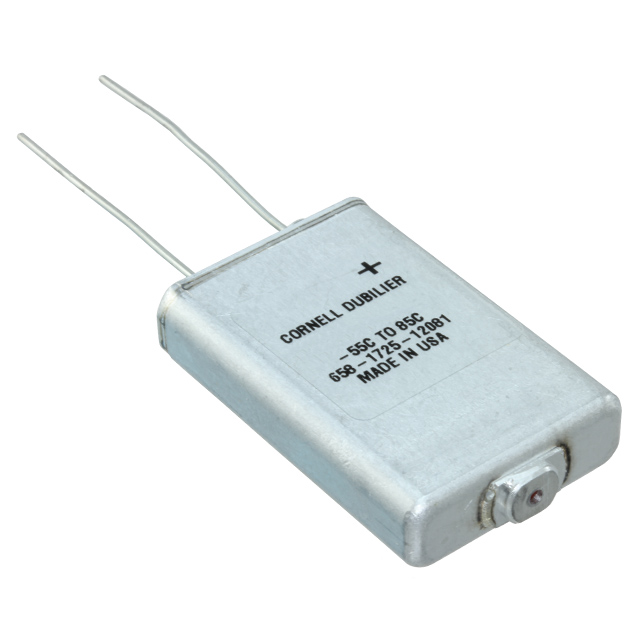

lmages are for reference only.THA581M100AA0C
CAP ALUM 580UF 20% 100V FLTPCK
DatasheetFlatPack
86,084 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
580 µF 100 V Aluminum Electrolytic Capacitors FlatPack 290mOhm @ 120Hz 5000 Hrs @ 85°C
THA581M100AA0C
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Cornell Dubilier Knowles |
| Series | THA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 580 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 290mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -55°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 20 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.433" L x 0.953" W (36.40mm x 24.20mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | FlatPack |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
|
|
| Part Number | THA581M100AA1C | THA502M020AA0C | THA502M020AA1C | THA522M040AD0C |
| Manufacturer | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 580UF 20% 100V FLTPCK | CAP ALUM 5000UF 20% 20V FLTPCK | CAP ALUM 5000UF 20% 20V FLTPCK | CAP ALUM 5200UF 20% 40V FLTPCK |
| Series | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles | Cornell Dubilier Knowles |
| Packaging | Bulk | Bulk | Bulk | Bulk |
