TLP3023SF
lmages are for reference only.TLP3023SF
OPTOISOLATOR 5KV TRIAC 6DIP 5L
Datasheet6-DIP (0.300", 7.62mm), 5 Leads
96,368 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP (Cut), 5 Lead
TLP3023SF
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | 200V/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package | 6-DIP (Cut), 5 Lead |
| Approval Agency | BSI, SEMKO, UR |
| Base Product Number | TLP3023 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute |  |

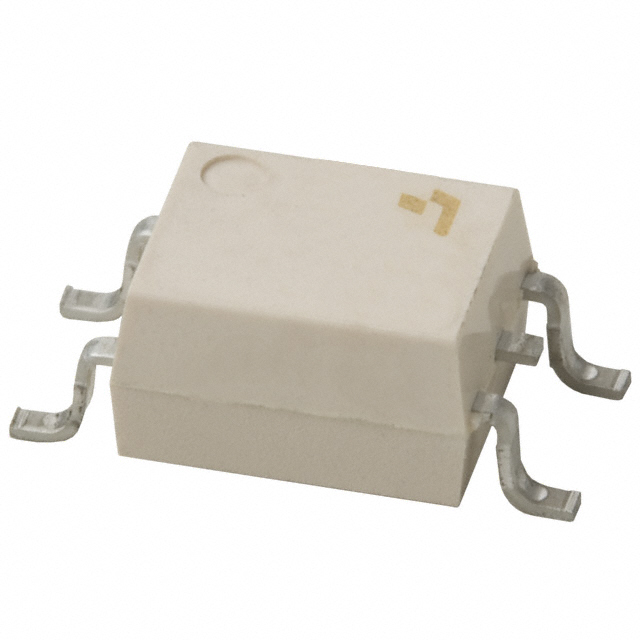

.jpg "TLP161J(U,C,F)") |
|
|
| Part Number | TLP161G(TPL,U,C,F) | TLP161J(U,C,F) | TLP160G(DMT7-TPL,F | TLP3052A(F |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | |||
| Description | PHOTOCOUPLER | OPTOISOLATOR 2.5KV TRIAC 6MFSOP | PHOTOCOUPLER | MOSFET N-CH |
| Series | * | - | * | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Box |
