TLP3062A(F
lmages are for reference only.TLP3062A(F
OPTO TRIAC COUPLER; ZERO-VOLTAGE
Datasheet6-DIP (0.300", 7.62mm), 5 Leads
83,674 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
TLP3062A(F
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 2kV/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 600µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm), 5 Leads |
| Supplier Device Package | 6-DIP |
| Approval Agency | CQC, cUR, UR |
| Base Product Number | TLP3062 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute | .jpg "TLP3062(S,C,F)") |
 |
 |
 |

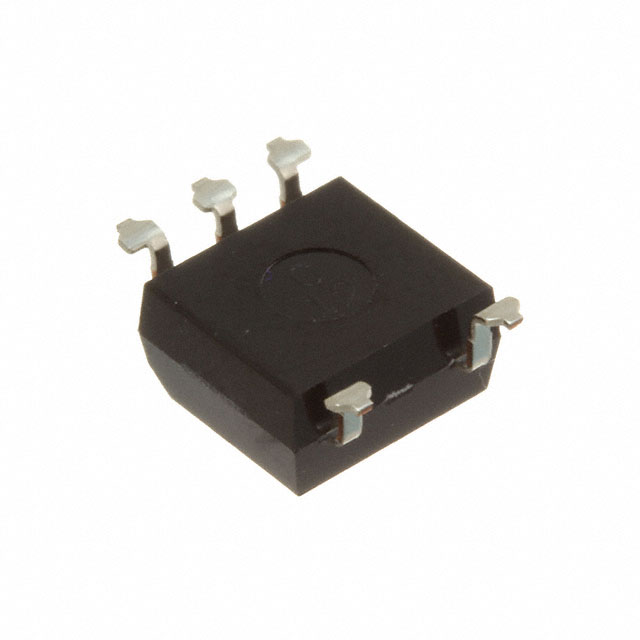

| Part Number | TLP3062(S,C,F) | TLP3062A(LF1,F | TLP3062A(TP1,F | TLP3023SF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | OPTOISOLATOR 5KV TRIAC 6DIP 5L | OPTO TRIAC COUPLER; ZERO-VOLTAGE | OPTO TRIAC COUPLER; ZERO-VOLTAGE | OPTOISOLATOR 5KV TRIAC 6DIP 5L |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube |
Recommended Products

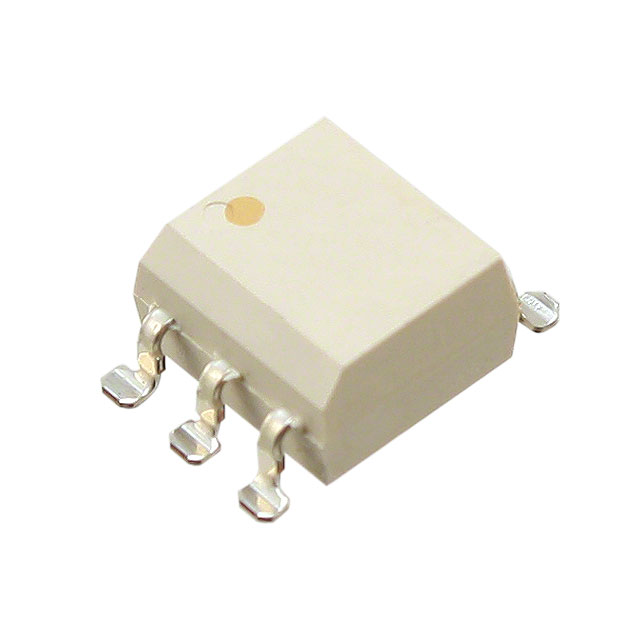

.jpg "TLP3031(S,C,F)")
.jpg "TLP3032(S,C,F)")
.jpg "TLP3033(S,C,F)")
.jpg "TLP3042(TP1,S,C,F)")
.jpg "TLP3043(S,C,F)")
.jpg "TLP3052(S,C,F)")

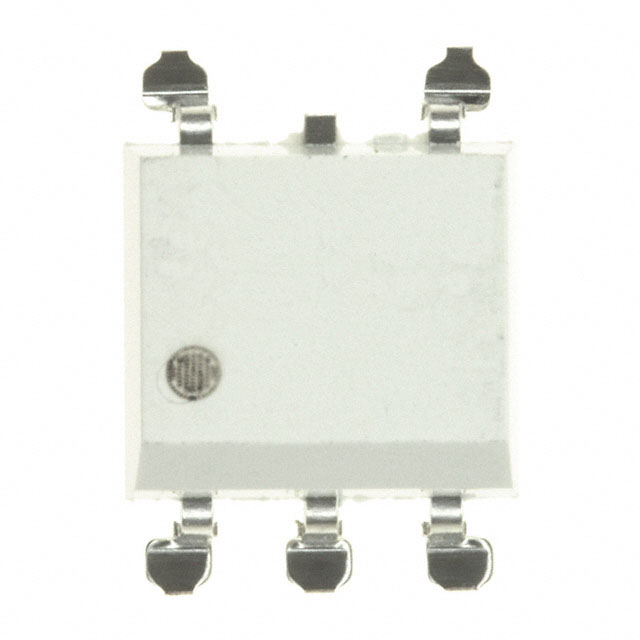

.jpg "TLP3064(TP1,SC,F,T)")
