Product CatalogPart Number
TPS74513PQWDRBRQ1
Manufacturer
Texas InstrumentsDescription
IC POWER
Datasheet
DatasheetPackage
8-VDFN Exposed Pad
In Stock
92,014 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TPS74513PQWDRBRQ1
TPS74513PQWDRBRQ1
lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 8-SON (3x3)
Quick Inquiry
TPS74513PQWDRBRQ1
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | Not applicable |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.43V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 36 µA |
| PSRR | - |
| Control Features | Current Limit, Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
| Base Product Number | TPS74513 |
| Current - Supply (Max) | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

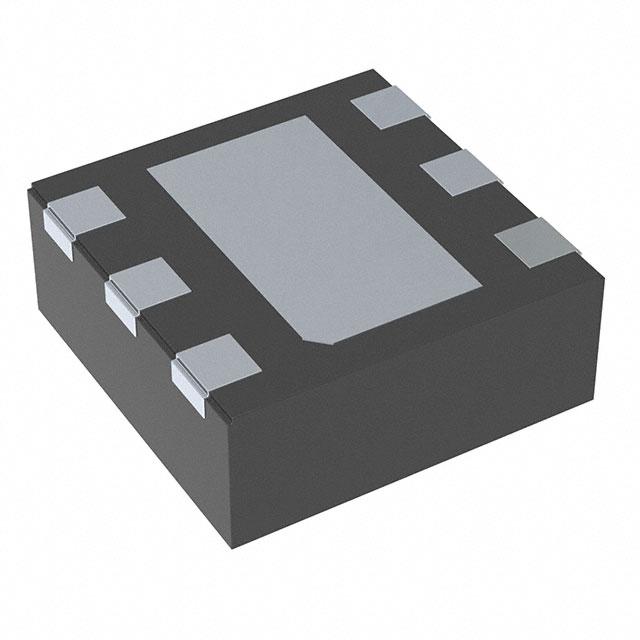

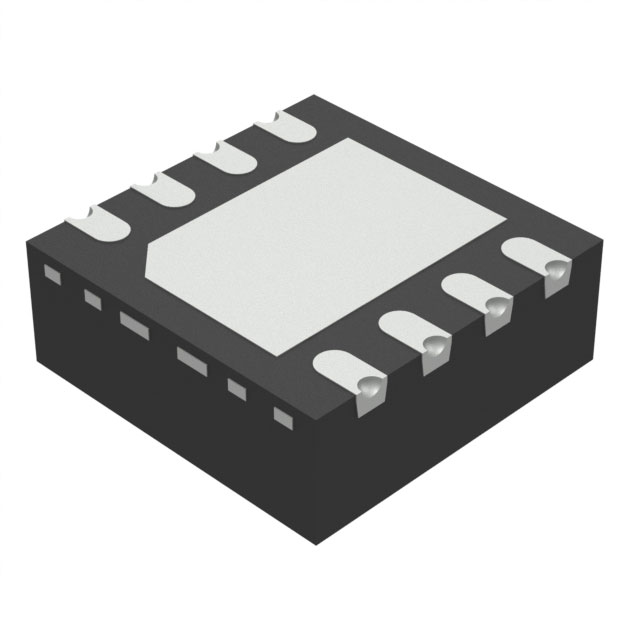

| Part Number | TPS745105PQWDRVRQ1 | TPS74510PQWDRBRQ1 | TPS74510PQWDRVRQ1 | TPS745115PQWDRBRQ1 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | Not applicable |
| Description | IC REG LINEAR 1.05V 500MA 6WSON | AUTOMOTIVE 500-MA, LOW-IQ, HIGH- | IC REG LINEAR 1V 500MA 6WSON | AUTOMOTIVE 500-MA, LOW-IQ, HIGH- |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
