TS10K60
lmages are for reference only.TS10K60
BRIDGE RECT 1PHASE 600V 10A TS4K
Datasheet4-SIP, GBL
96,190 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 600 V Through Hole TS4K
TS10K60
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 10 A |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, GBL |
| Supplier Device Package | TS4K |
| Base Product Number | TS10K60 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

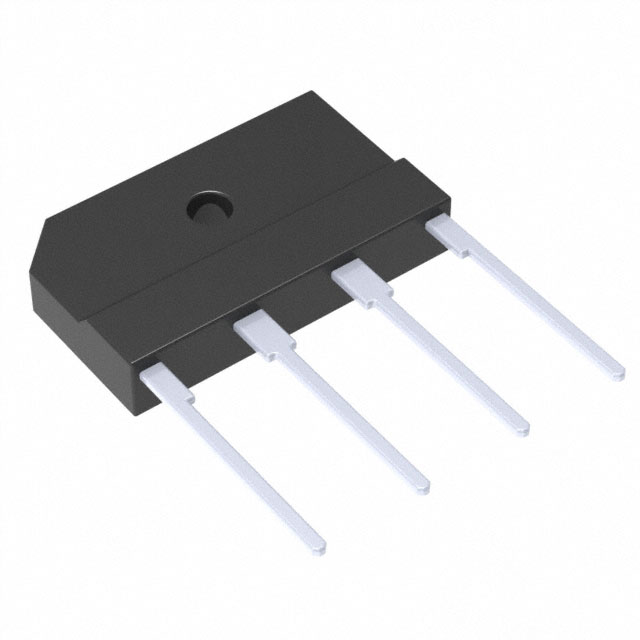

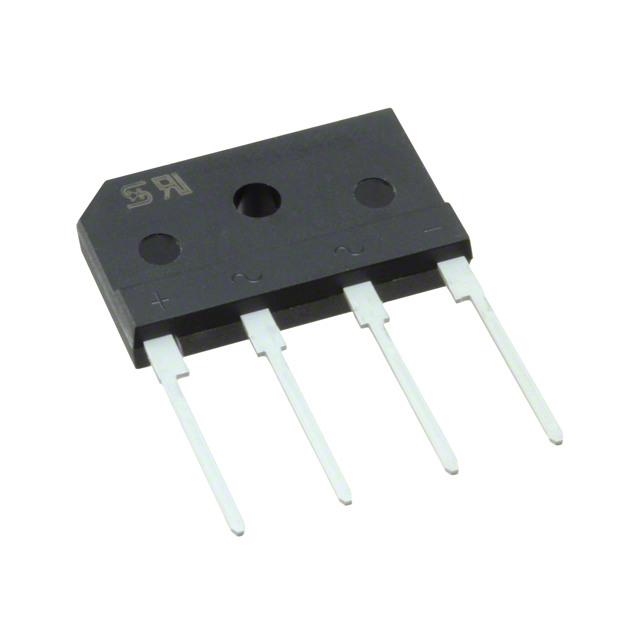

| Part Number | TS10K60-A | TS10K60H | TS10K60HD3G | TS10K100 |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | BRIDGE RECT 1PHASE 600V 10A TS4K | 10A, 600V, STANDARD BRIDGE RECTI | BRIDGE RECT 1PHASE 600V 10A TS4K | 10A, 1000V, STANDARD BRIDGE RECT |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
