TSHG8400
lmages are for reference only.TSHG8400
EMITTER IR 830NM 100MA RADIAL
DatasheetRadial, 5mm Dia (T 1 3/4)
38,744 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 830nm 1.5V 100mA 45mW/sr @ 100mA 44° Radial, 5mm Dia (T 1 3/4)
TSHG8400
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | TSHG8400 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 45mW/sr @ 100mA |
| Wavelength | 830nm |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 44° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

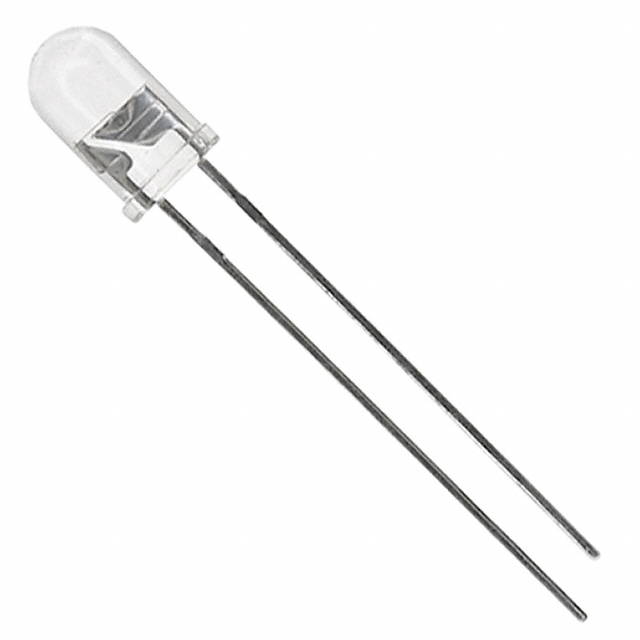

| Part Number | TSHG8200 | TSML1040 | TSMF1000 | TSHA6500 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 830NM 100MA RADIAL | EMITTER IR 940NM 100MA AXIAL | EMITTER IR 890NM 100MA 2SMD | EMITTER IR 875NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
