VPDR501W223K1GF001E

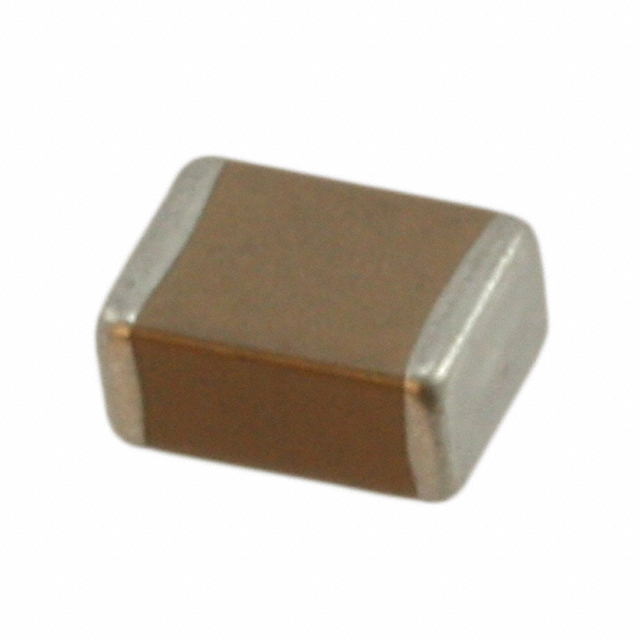

lmages are for reference only.VPDR501W223K1GF001E
CAP CER 0.022UF 500V X7R 1812
Datasheet1812 (4532 Metric)
59,459 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.022 µF ±10% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
VPDR501W223K1GF001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | PolyTerm®, HVS-PME |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.022 µF |
| Tolerance | ±10% |
| Voltage - Rated | 500V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Soft Termination, High Voltage |
| Ratings | - |
| Applications | SMPS Filtering, Boardflex Sensitive |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.125" W (4.50mm x 3.18mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.110" (2.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Failure Rate | - |
| Base Product Number | VPDR501 |
| Product Attribute | |
 |
|
 |
| Part Number | VPDR501W223K1GF001E | VPDR501W223K1GV001E | VPDR501W223K1GV001E | VPDR102W102K1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.022UF 500V X7R 1812 | CAP CER 0.022UF 500V X7R 1812 | CAP CER 0.022UF 500V X7R 1812 | CAP CER 1000PF 1KV X7R 1812 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
