VS-88CNQ060ASMPBF

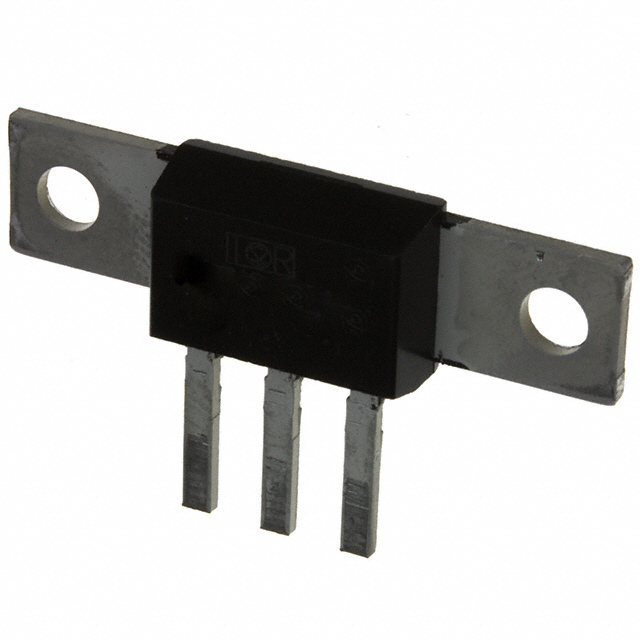

lmages are for reference only.VS-88CNQ060ASMPBF
DIODE ARRAY SCHOT 60V 40A D618SM
DatasheetD-61-8-SM
47,878 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 60 V 40A Through Hole D-61-8-SM
VS-88CNQ060ASMPBF
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 580 mV @ 40 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 640 µA @ 60 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | D-61-8-SM |
| Supplier Device Package | D-61-8-SM |
| Base Product Number | 88CNQ060 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | VS-88CNQ060APBF | VS-88CNQ060ASLPBF | VS-10CDH06-M3/I | VS-10CDH06HM3/I |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE MODULE SCHOT 60V 40A D61-8 | DIODE ARRAY SCHOT 60V 40A D618SL | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC |
| Series | - | - | FRED Pt® | FRED Pt® |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
