VS-UFL130FA60

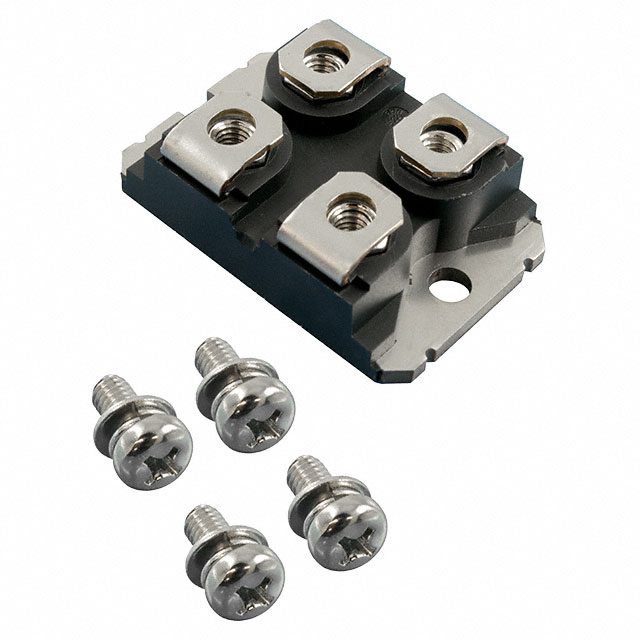

lmages are for reference only.VS-UFL130FA60
DIODE MODULE GP 600V 130A SOT227
DatasheetSOT-227-4, miniBLOC
22,824 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 2 Independent 600 V 130A Chassis Mount SOT-227-4, miniBLOC
VS-UFL130FA60
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 2 Independent |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) (per Diode) | 130A |
| Voltage - Forward (Vf) (Max) @ If | 1.88 V @ 120 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227 |
| Base Product Number | UFL130 |
| Reverse Recovery Time (trr) | 105 ns |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
|
| Part Number | VS-10CDH06-M3/I | VS-10CDH06HM3/I | VS-10CDU06-M3/I | VS-10CDU06HM3/I |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC |
| Series | FRED Pt® | FRED Pt® | FRED Pt® | FRED Pt® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
