AE10500SSH6605
lmages are for reference only.AE10500SSH6605
RF FILTER HIGH PASS 10.5GHZ MOD
DatasheetModule, SMA Connectors
81,527 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10.5GHz (Cutoff) Frequency High Pass RF Filter (Radio Frequency) 17.5GHz Bandwidth 2dB Module, SMA Connectors
AE10500SSH6605
| Category | Filters - RF Filters - |
| Manufacturer | Anatech Electronics Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | Not applicable |
| Frequency | 10.5GHz (Cutoff) |
| Bandwidth | 17.5GHz |
| Filter Type | High Pass |
| Ripple | - |
| Insertion Loss | 2dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension | 0.591" L x 0.500" W (15.00mm x 12.70mm) |
| Height (Max) | 0.394" (10.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|

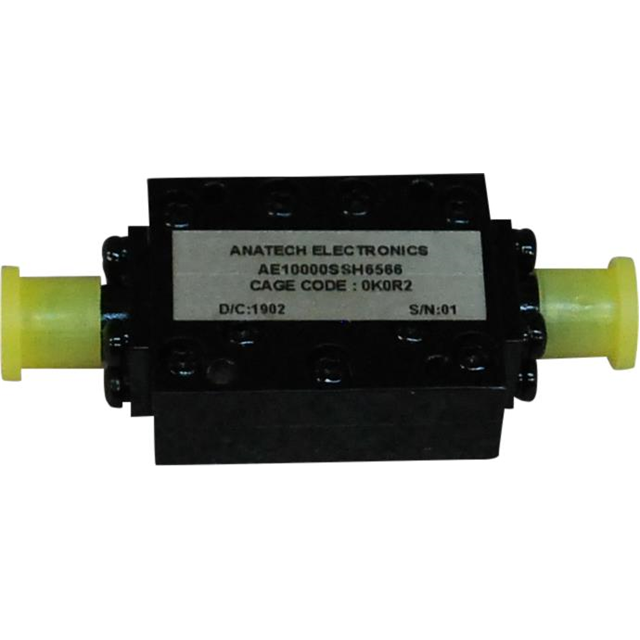

| Part Number | AE10000B10625 | AE10000SLB1005 | AE10000SSH6566 | AE1000B10426 |
| Manufacturer | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. | Anatech Electronics Inc. |
| RoHS Status | Not applicable | Not applicable | Not applicable | Not applicable |
| Description | RF FILTER BAND PASS 10GHZ MODULE | RF FILTER BAND PASS 10GHZ MODULE | RF FILTER HIGH PASS 10GHZ MODULE | RF FILTER BAND PASS 1GHZ MODULE |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
