AOC2012XAJC-10.0000C

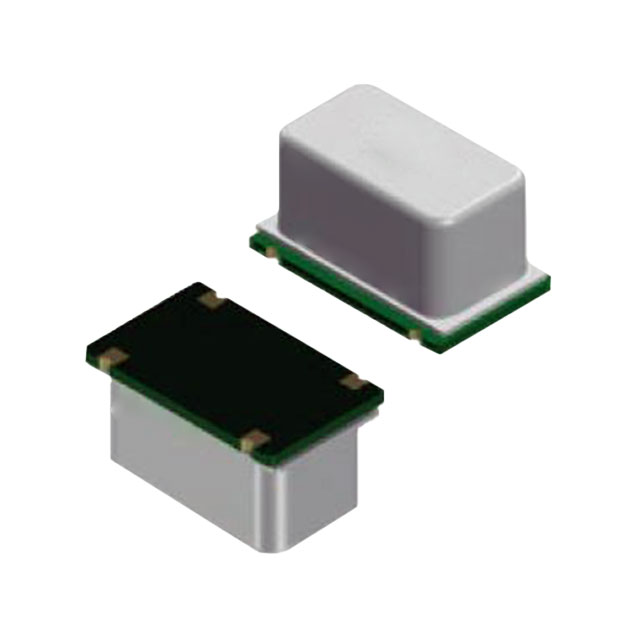

lmages are for reference only.AOC2012XAJC-10.0000C
XTAL OSC OCXO 10.0000MHZ CMOS
Datasheet14-SMD, No Lead, 4 Leads
89,989 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz OCXO CMOS Oscillator 3.3V 14-SMD, No Lead, 4 Leads
AOC2012XAJC-10.0000C
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Abracon LLC |
| Series | AOC2012 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 10 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±10ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 289mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SMD, No Lead, 4 Leads |
| Size / Dimension | 0.800" L x 0.500" W (20.32mm x 12.70mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | AOC2012XAJC-10.0000T1 | AOC2012XAJC-12.8000C | AOC2012XAJC-19.4400C | AOC2012XAJC-19.4400T1 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC OCXO 10.0000MHZ CMOS | XTAL OSC OCXO 12.8000MHZ CMOS | XTAL OSC OCXO 19.4400MHZ CMOS | XTAL OSC OCXO 19.4400MHZ CMOS |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Strip | Strip | Tape & Reel (TR) |
