Product CatalogPart Number
AP3009KTR-E1
Manufacturer
Diodes IncorporatedDescription
IC LED DRV RGLTR ANALOG SOT23-6
Datasheet
DatasheetPackage
SOT-23-6
In Stock
54,697 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AP3009KTR-E1
AP3009KTR-E1
lmages are for reference only.Payment Methods
Delivery Services
LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Analog Dimming 560mA (Switch) SOT-23-6
Quick Inquiry
AP3009KTR-E1
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 16V |
| Voltage - Output | 38V |
| Current - Output / Channel | 560mA (Switch) |
| Frequency | 1.2MHz |
| Dimming | Analog |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | AP3009 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

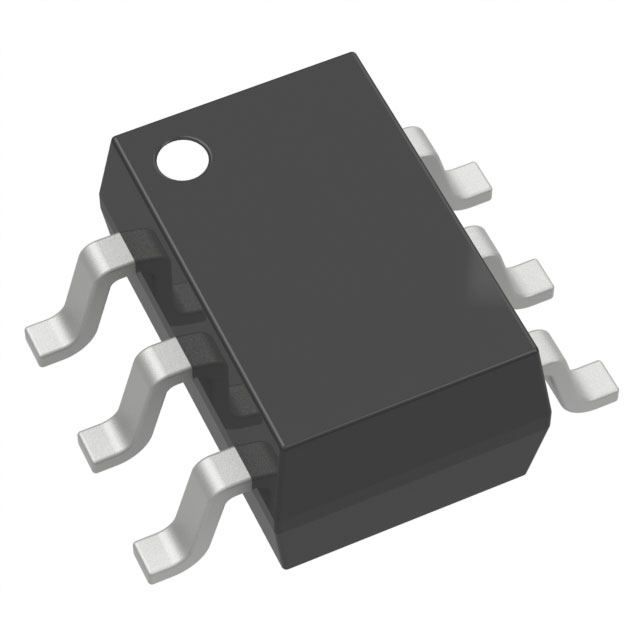

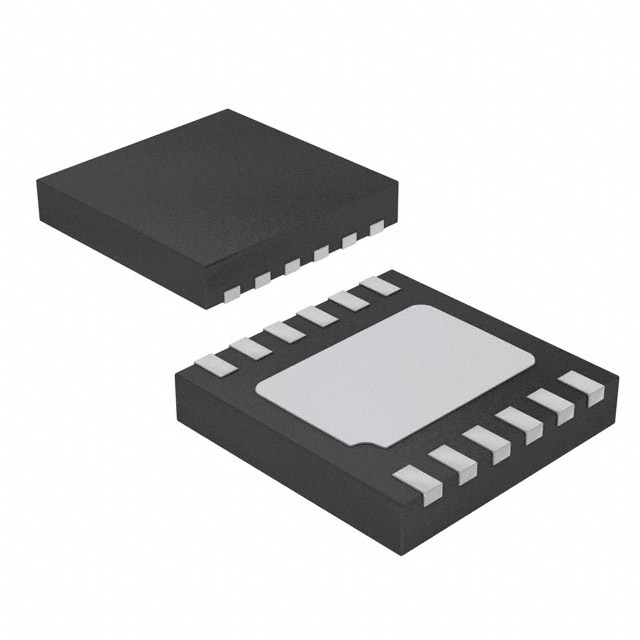

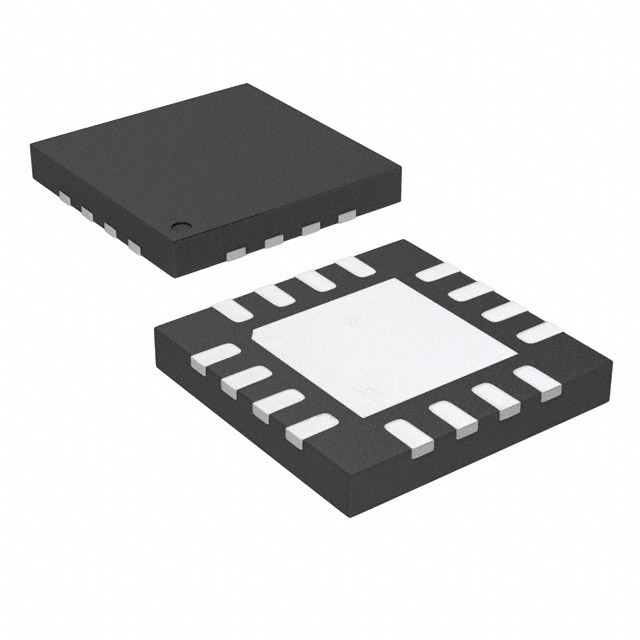

| Part Number | AP3602AKTR-G1 | AP3152FG-7 | AP3615FNTR-G1Alternate Purchasing Options | AP3019AKTTR-G1 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR RGLTR 100MA SOT23-6 | IC LED DRVR RGLTR DIM 30MA 12DFN | IC LED DRV RGLTR MULT-STEP 16QFN | IC LED DRVR RGLTR PWM TSOT23-6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
