ARC23-24PC-BM01SP1

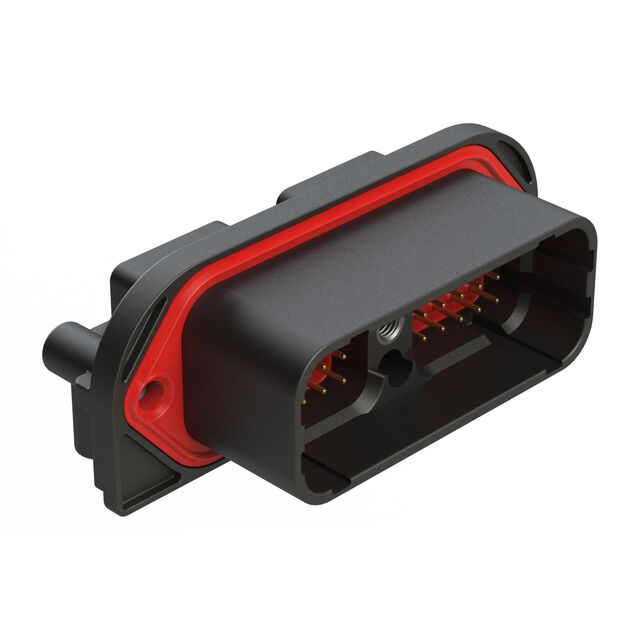

lmages are for reference only.ARC23-24PC-BM01SP1
24 POSITION PCB RECEPTACLE, PIN,
Datasheet-
37,200 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.174" (4.42mm)
ARC23-24PC-BM01SP1
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Amphenol Sine Systems Corp |
| Series | ARCSeries™ |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | 0.174" (4.42mm) |
| Number of Positions | 24 |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.173" (4.40mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.125" (3.18mm) |
| Overall Contact Length | - |
| Insulation Height | 1.500" (38.10mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

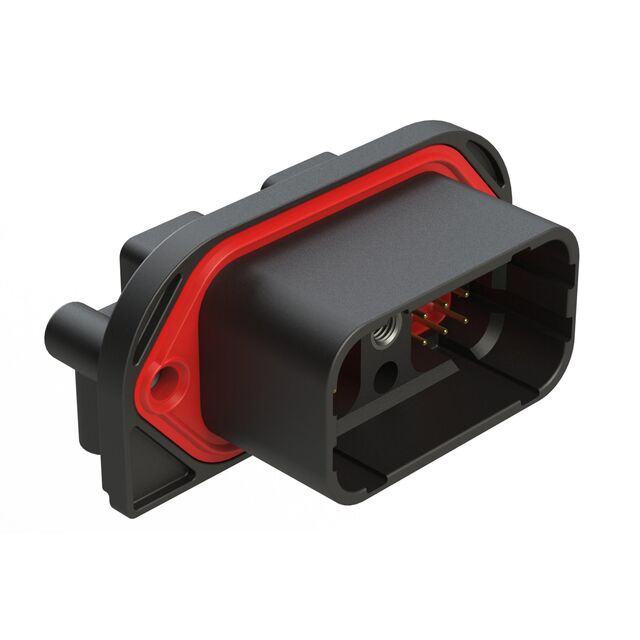

| Part Number | ARC23-24PA-BM01SP1 | ARC23-24PB-BM01SP1 | ARC23-24PD-BM01SP1 | ARC22-50P01-BM01SP1 |
| Manufacturer | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp | Amphenol Sine Systems Corp |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 24 POSITION PCB RECEPTACLE, PIN, | 24 POSITION PCB RECEPTACLE, PIN, | 24 POSITION PCB RECEPTACLE, PIN, | 50 POSITION PCB RECEPTACLE, PIN, |
| Series | ARCSeries™ | ARCSeries™ | ARCSeries™ | ARCSeries™ |
| Packaging | Box | Box | Box | Box |
