CDRH8D58/LDNP-150NC
lmages are for reference only.CDRH8D58/LDNP-150NC
FIXED IND 15UH 3.6A 36.3MOHM SMD
DatasheetNonstandard
35,423 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µH Shielded Inductor 3.6 A 36.3mOhm Max Nonstandard
CDRH8D58/LDNP-150NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH8D58/LD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 15 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 3.6 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 36.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

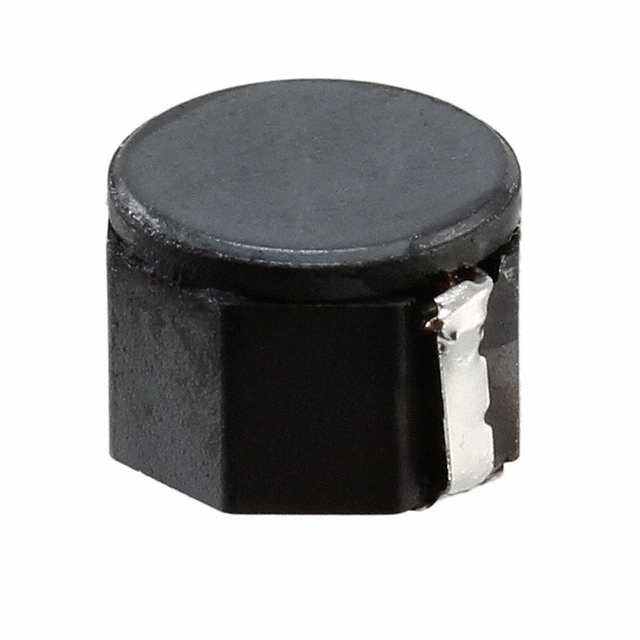

| Part Number | CDRH8D58/LDNP-150NC | CDRH8D58/LDNP-100NC | CDRH8D58/LDNP-101NC | CDRH8D58/LDNP-101NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 15UH 3.6A 36.3MOHM SMD | FIXED IND 10UH 4.5A 25.6MOHM SMD | FIXED IND 100UH 1.4A 175MOHM SMD | FIXED IND 100UH 1.4A 175MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
