F1B1-383815-270M

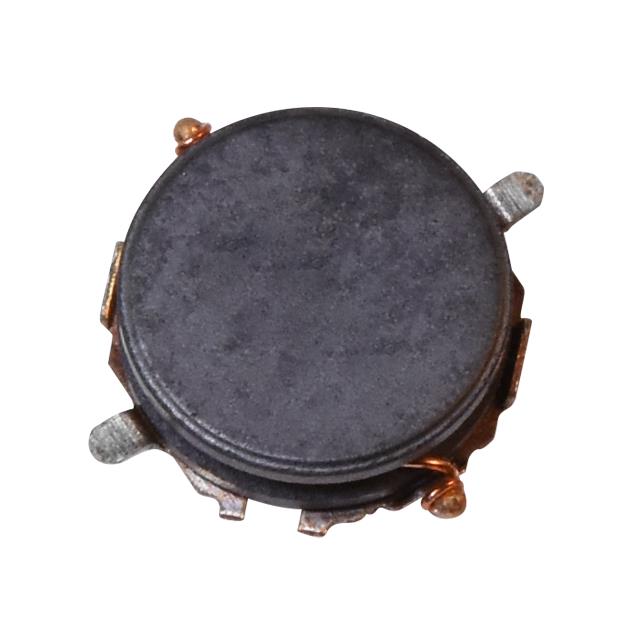

lmages are for reference only.F1B1-383815-270M
FIXED IND 27.0UH 600MA 900 MOHM
DatasheetNonstandard
44,998 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
27 µH Unshielded Drum Core, Wirewound Inductor 600 mA 900Ohm Max Nonstandard
F1B1-383815-270M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | F1B1-383815 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | - |
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | 650mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 900Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | F1B1-383815-220M | F1B1-383815-270M | F1B1-383815-2R2M | F1B1-383812-100M |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 22.0UH 720MA 636 MOHM | FIXED IND 27.0UH 600MA 900 MOHM | FIXED IND 2.2UH 1.85A 108 MOHM | FIXED IND 10.0UH 650MA 480 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
