HDASE011YD-000LF
lmages are for reference only.HDASE011YD-000LF
HDAS RECEPTALE 11 STRAIGHT PC TA
Datasheet-
27,760 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
11 Position Receptacle Connector 0.075" (1.91mm) Through Hole Gold
HDASE011YD-000LF
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Amphenol Aerospace Operations |
| Series | HDAS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.075" (1.91mm) |
| Number of Rows | 3 |
| Row Spacing - Mating | 0.075" (1.91mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Black |
| Insulation Height | 0.315" (8.00mm) |
| Contact Length - Post | 0.270" (6.86mm) |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange |
| Current Rating (Amps) | 4.5A per Contact |
| Voltage Rating | 750V |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HDASE020YD-000LF | HDASE029YD-000LF | HDASE041YD-000LF | HDASE041YD6A-000LF |
| Manufacturer | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

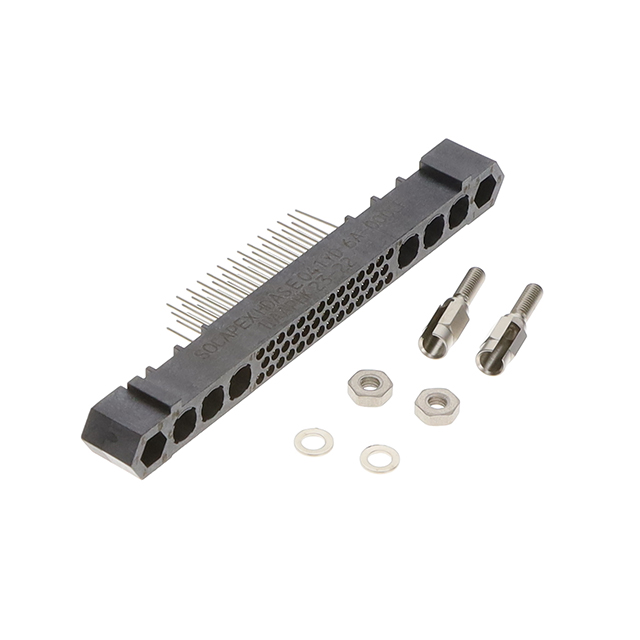

| Description | HDAS RECEPTALE 20 STRAIGHT PC TA | HDAS RECEPTALE 29 STRAIGHT PC TA | HDAS RECEPTALE 41 STRAIGHT PC TA | HDAS HYBRID RECEPTALE 41 STRAIGH |
| Series | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations | Amphenol Aerospace Operations |
| Packaging | Tray | Tray | Tray | Tray |
