HDASE202YD-000LF
lmages are for reference only.HDASE202YD-000LF
HDAS RECEPTALE 202 STRAIGHT PC T
Datasheet-
32,790 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
202 Position Receptacle Connector 0.075" (1.91mm) Through Hole Gold
HDASE202YD-000LF
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Amphenol Aerospace Operations |
| Series | HDAS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 202 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.075" (1.91mm) |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.075" (1.91mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Threaded |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50.0µin (1.27µm) |
| Insulation Color | Black |
| Insulation Height | 0.315" (8.00mm) |
| Contact Length - Post | 0.270" (6.86mm) |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Jackscrews, Mating Flange, Mounting Flange |
| Current Rating (Amps) | 4.5A per Contact |
| Voltage Rating | 750V |
| Applications | - |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

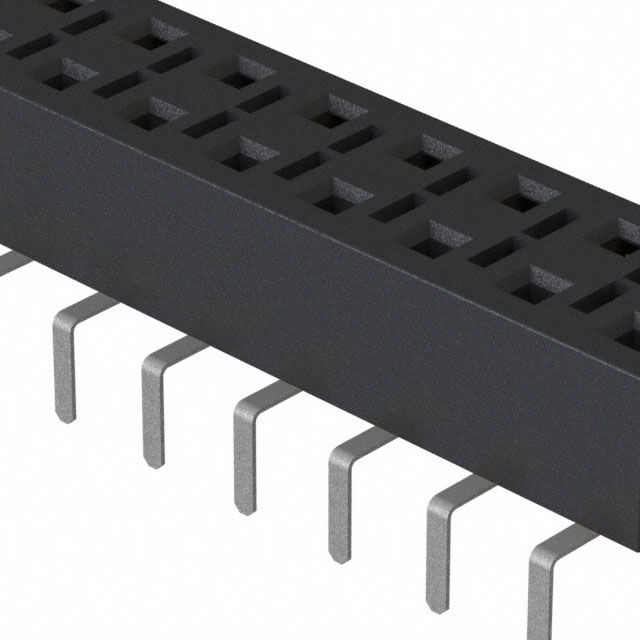

| Part Number | HDASE253YD-000LF | HLE-118-02-G-DV | HSS-128-S-2 | HLE-132-02-F-DV-PE-BE |
| Manufacturer | Amphenol Aerospace Operations | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HDAS RECEPTALE 253 STRAIGHT PC T | CONN RCPT 36POS 0.1 GOLD SMD | .100" HIGH-TEMP SINGLE ROW SCREW | CONN RCPT 64POS 0.1 GOLD PCB |
| Series | Amphenol Aerospace Operations | Samtec Inc. | Samtec Inc. | Samtec Inc. |
| Packaging | Tray | Tube | Tube | Tube |
