Product Catalog

HDASE050YD-000LF

HDASE050YD-000LF

HDASE050YD-000LF

lmages are for reference only.
  • Part Number

    HDASE050YD-000LF

  • Manufacturer

    Amphenol Aerospace Operations
  • Description

    HDAS RECEPTALE 50 STRAIGHT PC TA

  • Datasheet

    DatasheetDatasheet
  • Package

    -

  • In Stock

    91,192 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

50 Position Receptacle Connector 0.075" (1.91mm) Through Hole Gold

Quick Inquiry

HDASE050YD-000LF

Get the Price Now!

Specifications

Category Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets
Manufacturer Amphenol Aerospace Operations
Series HDAS
Packaging Tray
RoHS Status ROHS3 Compliant
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.075" (1.91mm)
Number of Rows 3
Row Spacing - Mating 0.075" (1.91mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Threaded
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Insulation Color Black
Insulation Height 0.315" (8.00mm)
Contact Length - Post 0.270" (6.86mm)
Operating Temperature -65°C ~ 150°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features Jackscrews, Mating Flange, Mounting Flange
Current Rating (Amps) 4.5A per Contact
Voltage Rating 750V
Applications -
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post -
Base Product Number -

Parts with Similar Specifications

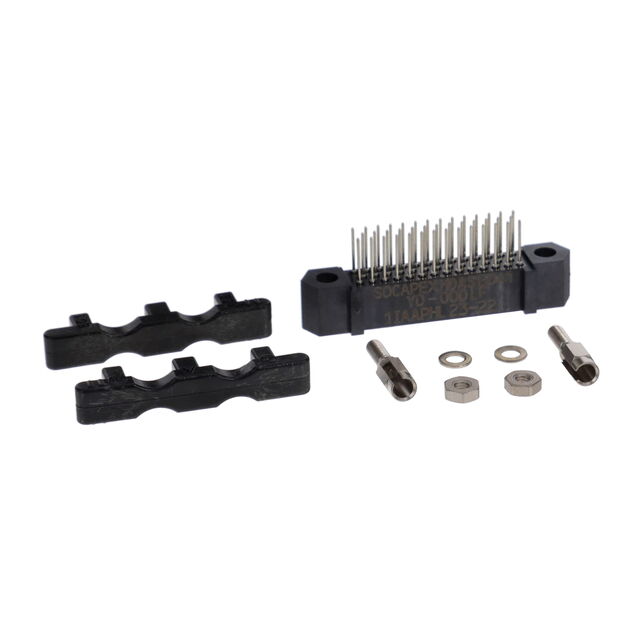

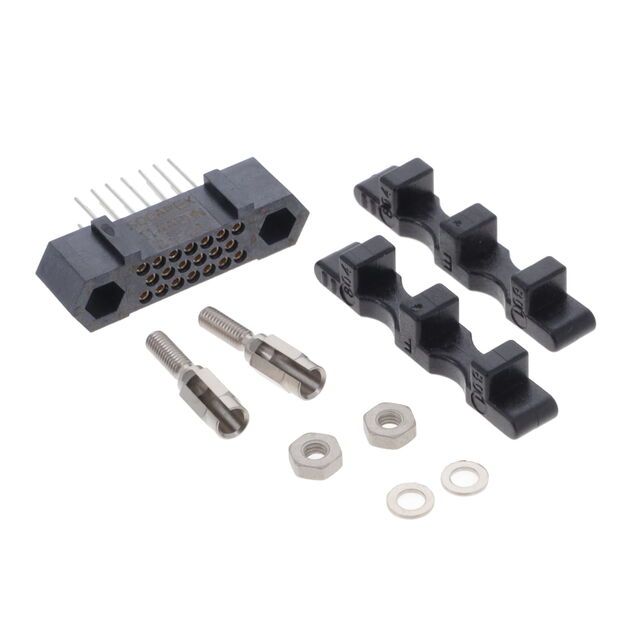

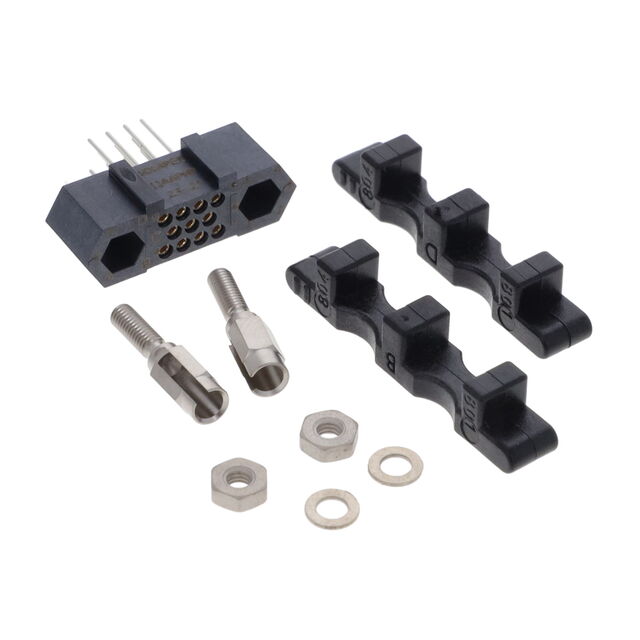

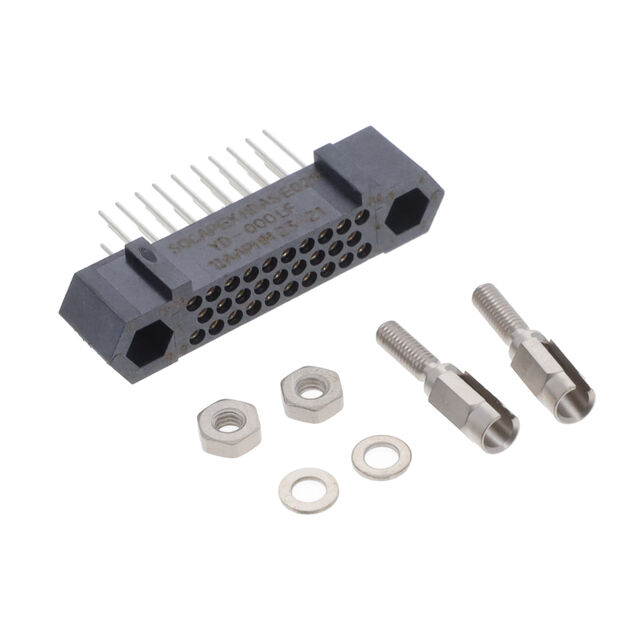

Product Attribute HDASE011YD-000LF HDASE020YD-000LF HDASE029YD-000LF HDASE041YD-000LF
Part Number HDASE011YD-000LF HDASE020YD-000LF HDASE029YD-000LF HDASE041YD-000LF
Manufacturer Amphenol Aerospace Operations Amphenol Aerospace Operations Amphenol Aerospace Operations Amphenol Aerospace Operations
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description HDAS RECEPTALE 11 STRAIGHT PC TA HDAS RECEPTALE 20 STRAIGHT PC TA HDAS RECEPTALE 29 STRAIGHT PC TA HDAS RECEPTALE 41 STRAIGHT PC TA
Series Amphenol Aerospace Operations Amphenol Aerospace Operations Amphenol Aerospace Operations Amphenol Aerospace Operations
Packaging Tray Tray Tray Tray
