Product CatalogPart Number

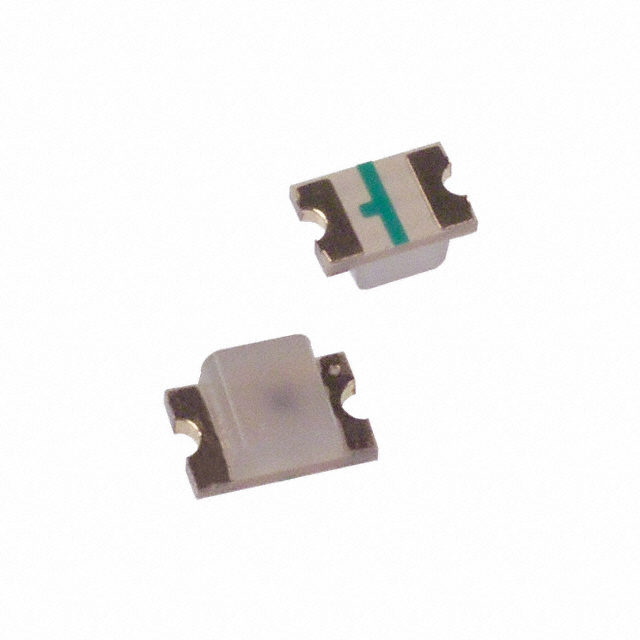

HSMR-C170-R0000
Manufacturer
Broadcom LimitedDescription
LED BLUE TOP MNT 2SMD
Datasheet
DatasheetPackage
0805 (2012 Metric)
In Stock
44,970 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
HSMR-C170-R0000
HSMR-C170-R0000
lmages are for reference only.Payment Methods
Delivery Services
Blue 466nm LED Indication - Discrete 3.4V 0805 (2012 Metric)
Quick Inquiry
HSMR-C170-R0000
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Broadcom Limited |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue |
| Configuration | Standard |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 170mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 20mA |
| Viewing Angle | 155° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 466nm |
| Wavelength - Peak | 462nm |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 0.90mm |
| Base Product Number | HSMR-C170 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | HSMR-C170 | HSMR-C020 | HSMR-C110 | HSMR-C120 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED BLUE DIFFUSED CHIP SMD | LED BLUE 0603 SMD | LED BLUE DIFF CHIP SMD R/A | LED BLUE CLEAR CHIP SMD R/A |
| Series | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
HSMR-C020
Broadcom Limited

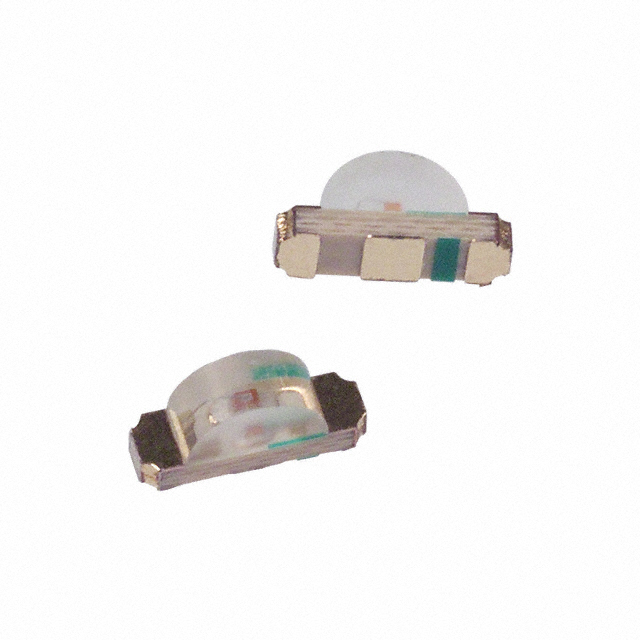

HSMR-C110
Broadcom Limited

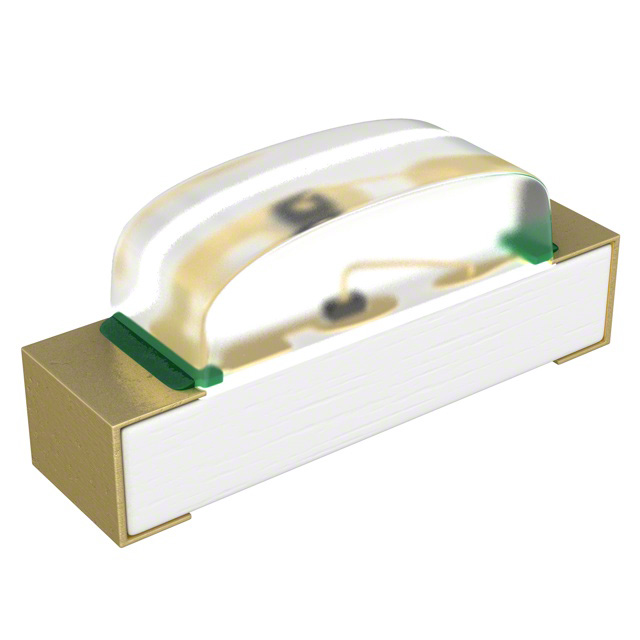

HSMR-C120
Broadcom Limited

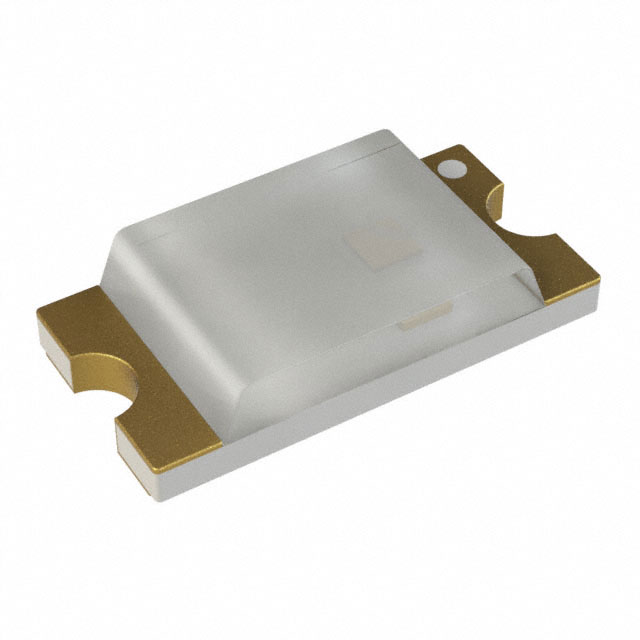

HSMR-C130
Broadcom Limited

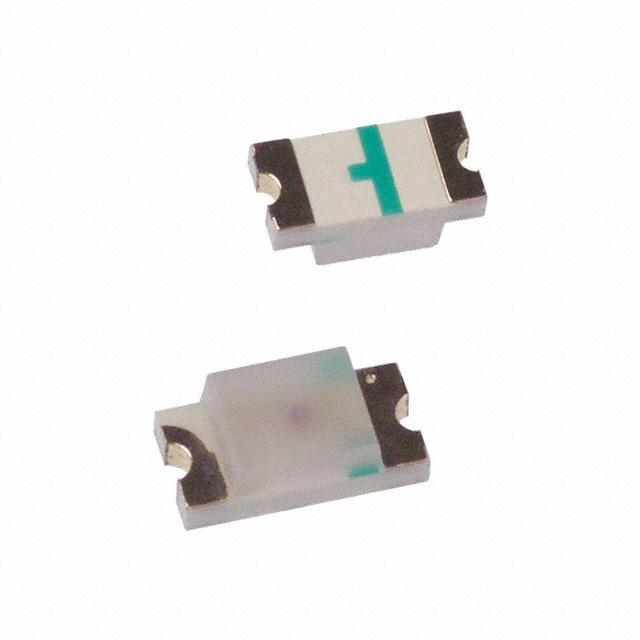

HSMR-C150
Broadcom Limited
HSMR-C170
Broadcom Limited
HSMR-C190
Broadcom Limited
HSMR-C191
Broadcom Limited
HSMR-C191-S0000
Broadcom Limited
HSMR-C197
Broadcom Limited
HSMR-C230
Broadcom Limited
HSMR-C250
Broadcom Limited

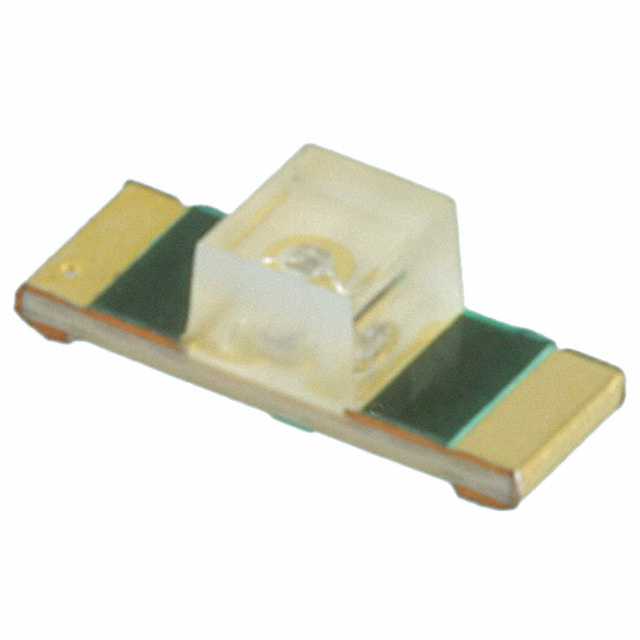

HSMR-C265
Broadcom Limited

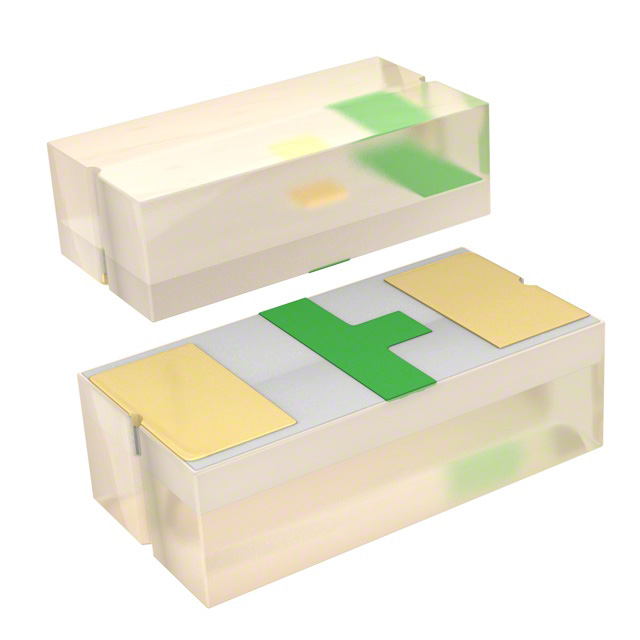

HSMR-C280
Broadcom Limited

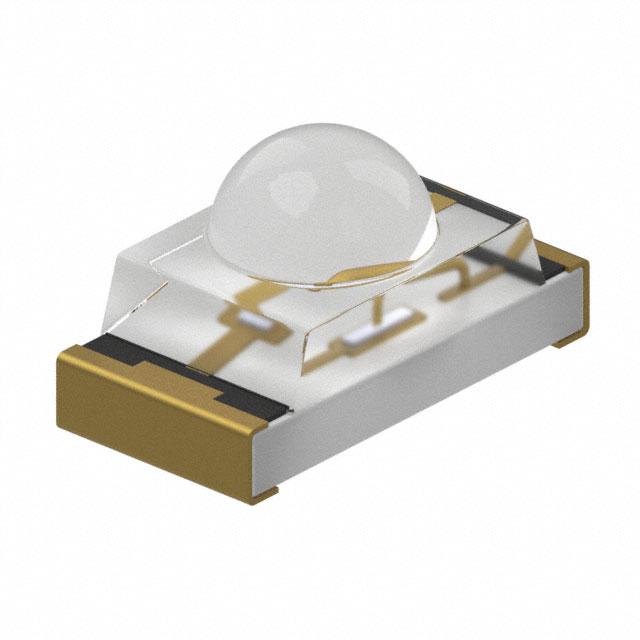

HSMR-C320
Broadcom Limited
HSMR-C370
Broadcom Limited
HSMR-C380
Broadcom Limited

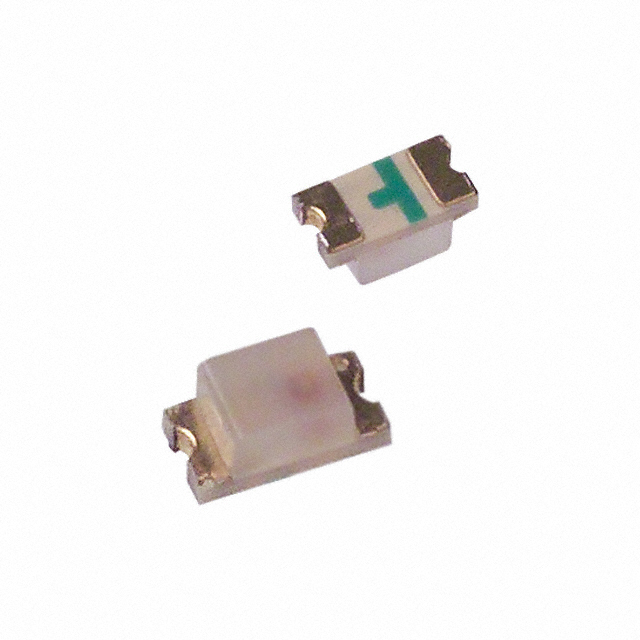

HSMR-CL25
