LNT2H681MSEF
lmages are for reference only.Payment Methods
Delivery Services

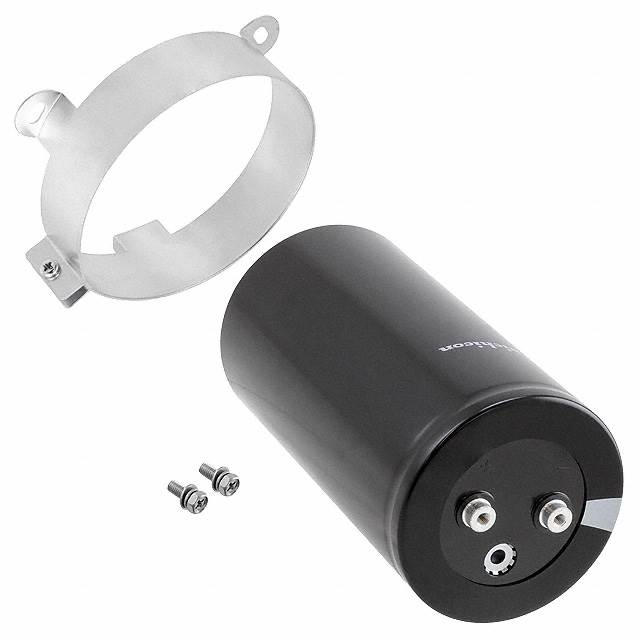

680 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
LNT2H681MSEF
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Nichicon |
| Series | LNT |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.88 A @ 10 kHz |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
|
 |
|
| Part Number | LNT2H681MSEFBB | LNT2H681MSEFBN | LNT2H682MSEJ | LNT2H682MSEJBB |
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 500V SCREW CH | CAP ALUM 680UF 20% 500V SCREW CH | CAP ALUM 6800UF 20% 500V SCREW | CAP ALUM 6800UF 20% 500V SCREW |
| Series | Nichicon | Nichicon | Nichicon | Nichicon |
| Packaging | Bulk | Bulk | Bulk | Bulk |
