MLF2012DR22JTD25
lmages are for reference only.MLF2012DR22JTD25
FIXED IND 220NH 250MA 300MOHM SM
Datasheet0805 (2012 Metric)
52,372 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 nH Shielded Multilayer Inductor 250 mA 300mOhm Max 0805 (2012 Metric)
MLF2012DR22JTD25
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MLF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 220 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 20 @ 25MHz |
| Frequency - Self Resonant | 250MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

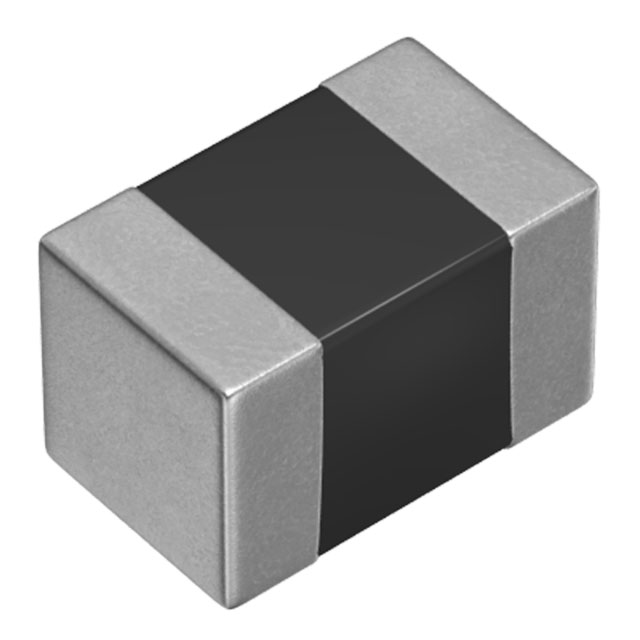

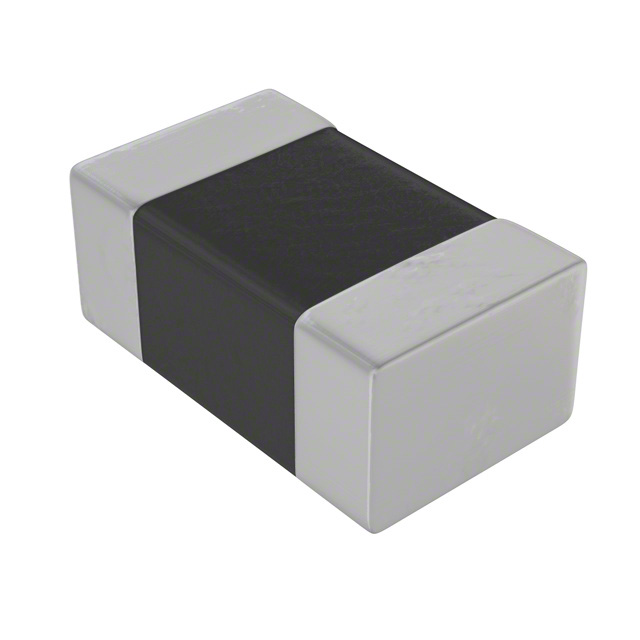

| Part Number | MLF2012DR22JT000 | MLF2012DR22KT000 | MLF2012DR22KTD25 | MLF2012DR22M |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220NH 250MA 300MOHM SM | FIXED IND 220NH 250MA 300MOHM SM | FIXED IND 220NH 250MA 300MOHM SM | FIXED IND 220NH 250MA 300MOHM SM |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
