MSN12AD40-RUD
lmages are for reference only.MSN12AD40-RUD
DC DC CONVERTER 0.6-1.8V
Datasheet144-BBGA Module
76,135 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 40A 8V - 15V Input
MSN12AD40-RUD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 0.6 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 144-BBGA Module |
| Size / Dimension | 0.63" L x 0.63" W x 0.30" H (16.0mm x 16.0mm x 7.5mm) |
| Supplier Device Package | 144-BGA (16x16) |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | MSN12AD40 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
|

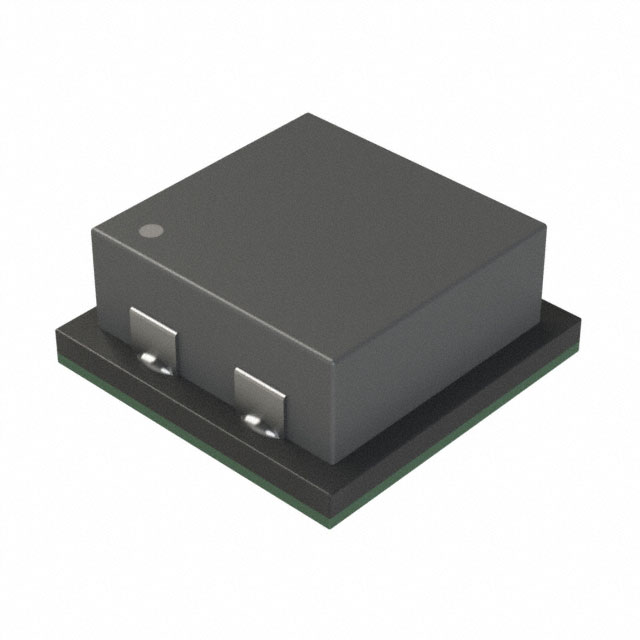

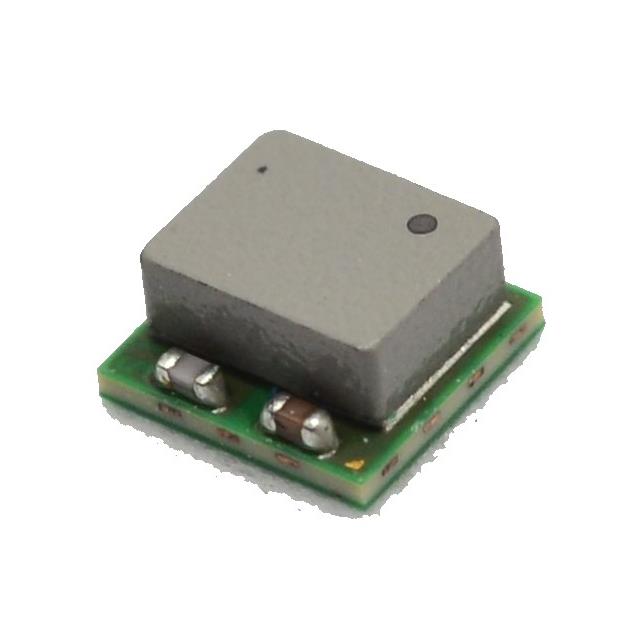

| Part Number | MSN12AD12-MP | MSN12AD20-MQ | MSN12AD60-RUD | MSN24VD03-GR |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.6-5.5V | DC DC CONVERTER 0.6-5.5V | DC DC CONVERTER 0.6-1.8V | DC DC CONVERTER 5.1-20V |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
