MYBSP01206AZFT
lmages are for reference only.MYBSP01206AZFT
72W, 12VO/6A ISOLATED DC-DC CONV
Datasheet10-DIP Module
99,168 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 6A 41.1V - 57V Input
MYBSP01206AZFT
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 41.1V |
| Voltage - Input (Max) | 57V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 72 W |
| Applications | ITE (Commercial) |
| Features | Hot Swappable |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 2.22" L x 0.87" W x 0.34" H (56.4mm x 22.2mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
|
|

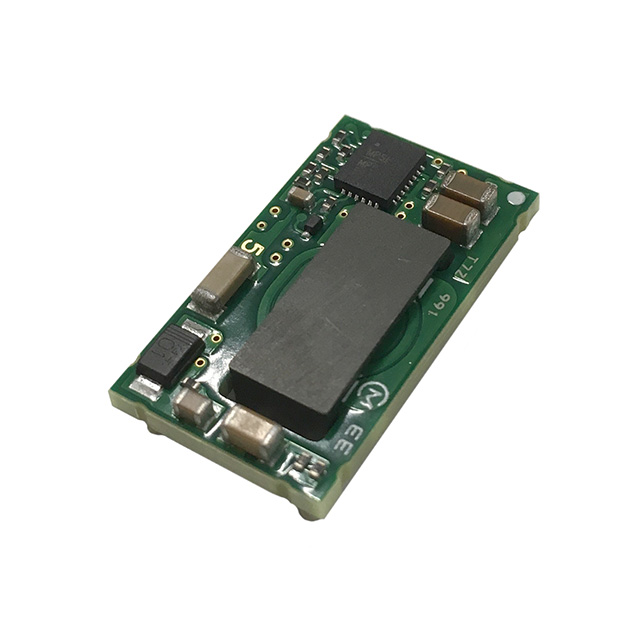

| Part Number | MYBSP01206AZFT-EVM | MYBSP01201ABF | MYBSP01201ABF-EVM | MYBSP0122BABF |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | POWERM | DC DC CONVERTER 12V 12W | POWERM | DC DC CONVERTER 12V 26W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Box | Tray | Box | Cut Tape (CT) |
