PT52A524B

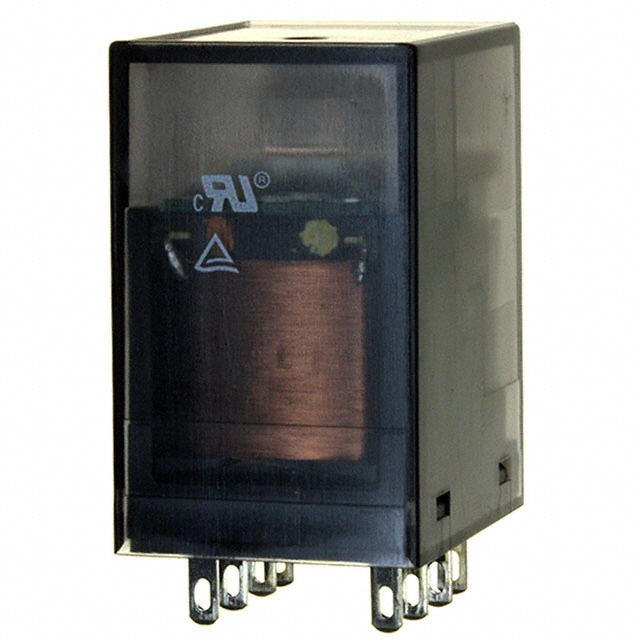

lmages are for reference only.PT52A524B
RELAY GEN PURPOSE 4PDT 6A 24V
Datasheet-
15,383 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 24VAC Coil Socketable
PT52A524B
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PTH, SCHRACK |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 250VAC - Max |
| Load - Max Switching | 1500VA |
| Coil Current | 41.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 38.4 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 192 Ohms |
| Base Product Number | PT52A |
| Product Attribute |  |
 |
 |
 |
| Part Number | PT52A512B | PT52A012B | PT52A024B | PT52AL12B |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE 4PDT 6A 12V | RELAY GEN PURPOSE 4PDT 6A 12V | RELAY GEN PURPOSE 4PDT 6A 24V | RELAY GEN PURPOSE 4PDT 6A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
