Product CatalogPart Number
SMS12CT1
Manufacturer
onsemiDescription
TVS DIODE 12VWM 23VC SC74
Datasheet
DatasheetPackage
SC-74, SOT-457
In Stock
29,696 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
SMS12CT1
SMS12CT1
lmages are for reference only.Payment Methods
Delivery Services
23V Clamp 15A (8/20µs) Ipp Tvs Diode Surface Mount SC-74
Quick Inquiry
SMS12CT1
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 23V |
| Current - Peak Pulse (10/1000µs) | 15A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 120pF @ 1MHz |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | SC-74 |
| Base Product Number | SMS12 |
| Unidirectional Channels | 5 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

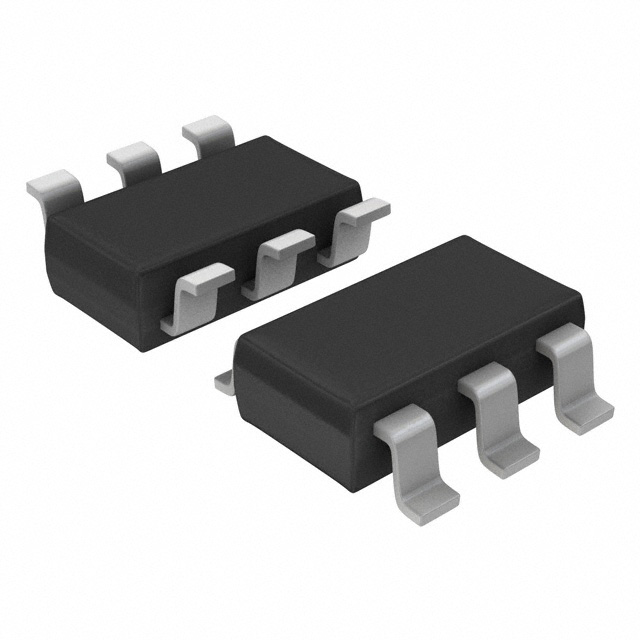

| Part Number | SMS12CT1G | SMS12.TCT | SMS12C.TCT | SMS12T1 |
| Manufacturer | onsemi | Semtech Corporation | Semtech Corporation | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |

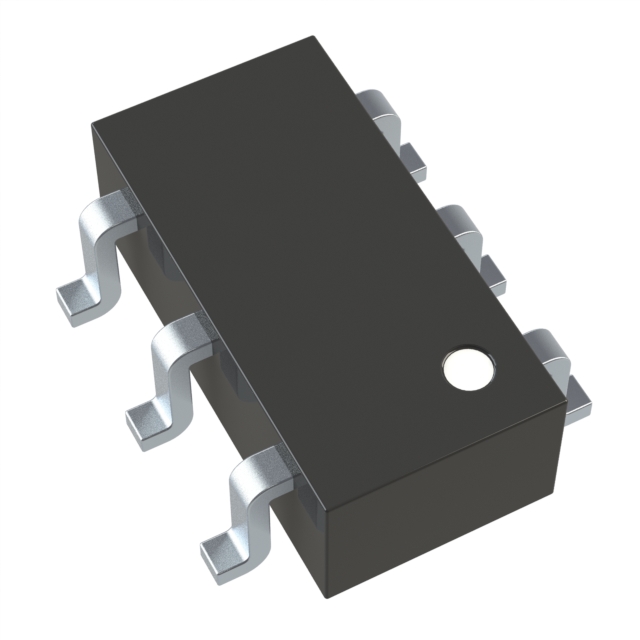

| Description | TVS DIODE 12VWM 23VC 6TSOP | TVS DIODE 12VWM 23VC SOT23-6 | TVS DIODE 12VWM 23VC SOT23-6 | TVS DIODE 12VWM 23VC SC74 |
| Series | onsemi | Semtech Corporation | Semtech Corporation | onsemi |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
