ULS-3.3/30-D48N-C
lmages are for reference only.ULS-3.3/30-D48N-C
DC DC CONVERTER 3.3V 100W
Datasheet8-DIP Module, 1/16 Brick
32,334 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 30A 36V - 75V Input
ULS-3.3/30-D48N-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | ULS (100W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 30A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.40" H (33.0mm x 22.9mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ULS-3.3 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
|
 |

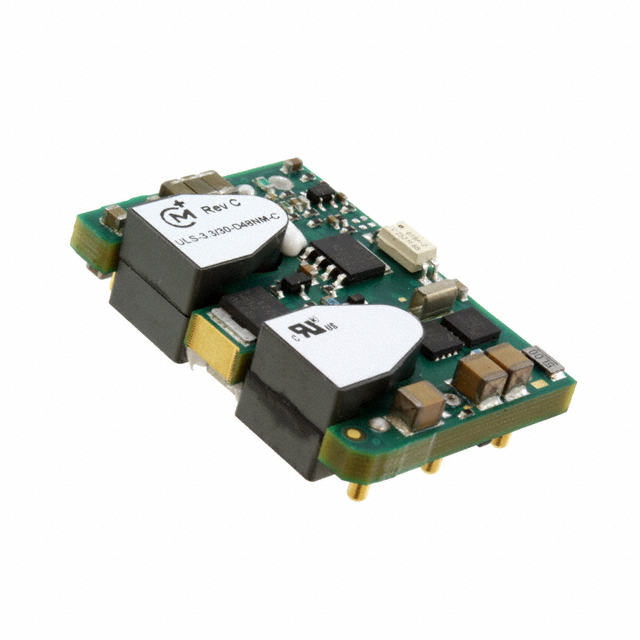

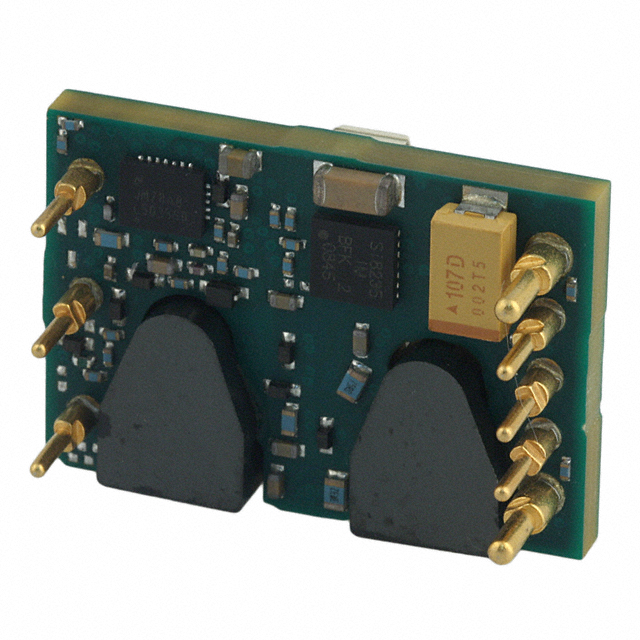

| Part Number | ULS-3.3/30-D48NH-C | ULS-3.3/30-D48NM-C | ULS-3.3/30-D48NM-C | ULS-3.3/30-D48P-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 3.3V 100W | DC DC CONVERTER 3.3V 100W | DC DC CONVERTER 3.3V 100W | DC DC CONVERTER 3.3V 100W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tray |
