VCB4828SBO-100WFR3
lmages are for reference only.VCB4828SBO-100WFR3
DC DC CONVERTER, 100W, 28V, HEAT
DatasheetSixteenth Brick
46,027 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 28V 3.571A 36V - 75V Input
VCB4828SBO-100WFR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.571A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.51" H (33.0mm x 22.9mm x 12.9mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

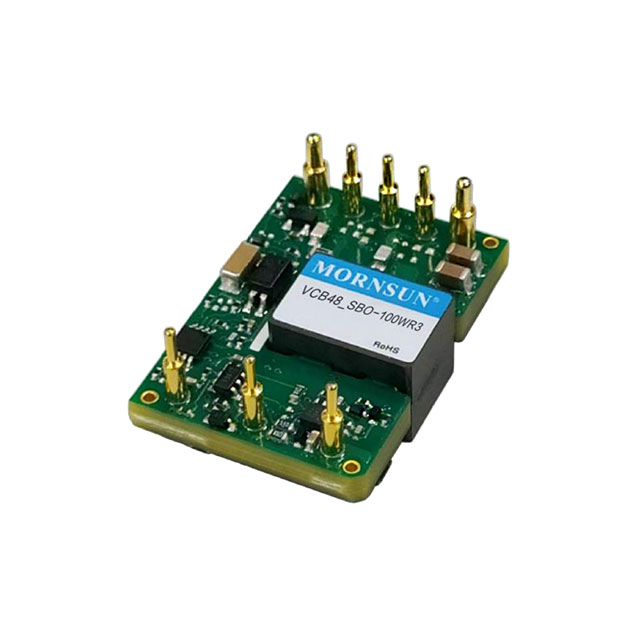

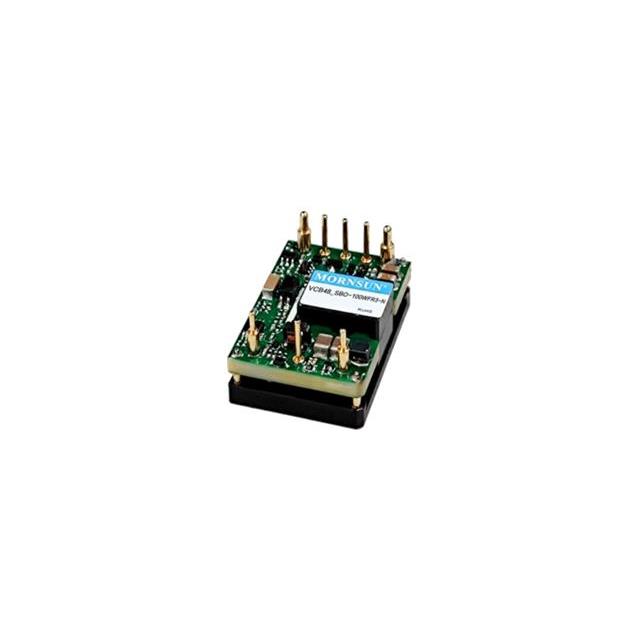

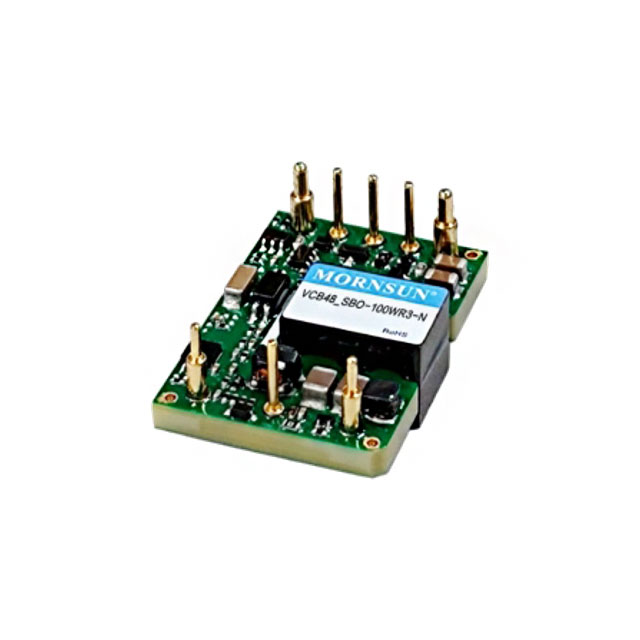

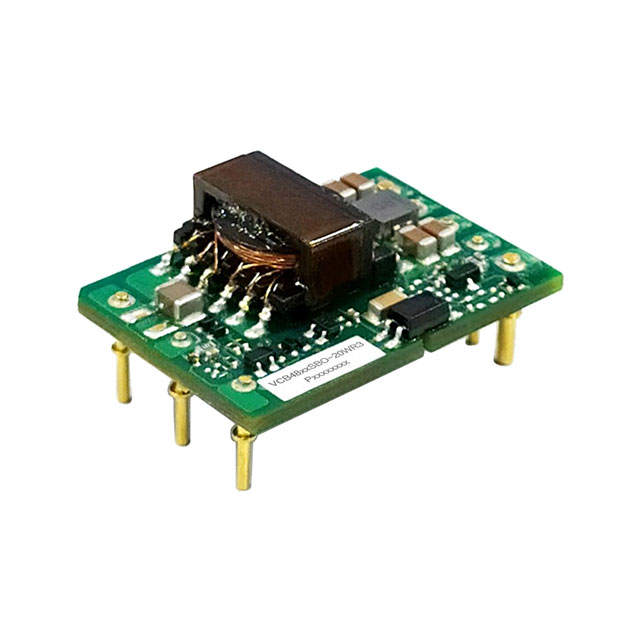

| Part Number | VCB4828SBO-100WFR3-N | VCB4828SBO-100WR3 | VCB4828SBO-100WR3-N | VCB4828SBO-20WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER, 100W, 28V | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER, 20W, 28V |
| Series | ||||
| Packaging | VCB48_SBO-100W(F)R3(-N) (100W) | VCB48_SBO-100WR3 (100W) | VCB48_SBO-100WR3(-N) | VCB48_SBO-20WR3 (20W) |
