Product CatalogPart Number
VPAB3822-R82M
Manufacturer
CODACADescription
AUTOMOTIVE THT MOLDING POWER CHK
Datasheet
DatasheetPackage
Vertical, 2 PC Pin
In Stock
85,824 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VPAB3822-R82M
VPAB3822-R82M

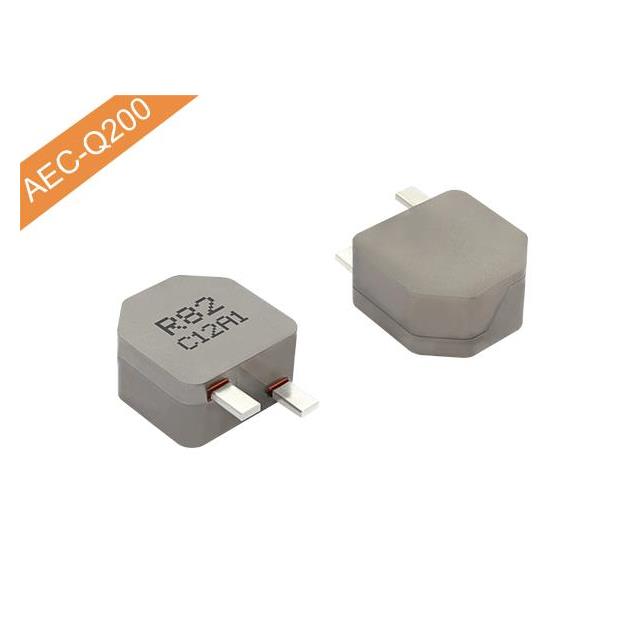

lmages are for reference only.Payment Methods
Delivery Services
0.82 µH Shielded Molded Inductor 138 A 0.175mOhm Max Vertical, 2 PC Pin High Current Through Hole, Molding Power Choke
Quick Inquiry
VPAB3822-R82M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | CODACA |
| Series | VPAB3822 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Alloy Powder |
| Inductance | 0.82 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 138 A |
| Current - Saturation (Isat) | 330A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.175mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C |
| Inductance Frequency - Test | - |
| Features | High Current Through Hole, Molding Power Choke |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 2 PC Pin |
| Supplier Device Package | Vertical, 2 PC Pin |
| Size / Dimension | 1.506" L x 0.866" W (38.25mm x 22.00mm) |
| Height - Seated (Max) | 1.506" (38.25mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | VPAB3822-1R5M | VPAB3822-2R2M | VPAB3822-3R3M | AMDLA1707S-6R8MT |
| Manufacturer | CODACA | CODACA | CODACA | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AUTOMOTIVE THT MOLDING POWER CHK | AUTOMOTIVE THT MOLDING POWER CHK | AUTOMOTIVE THT MOLDING POWER CHK | FIXED IND 6.8UH 24A 7.2MOHM SMD |
| Series | CODACA | CODACA | CODACA | Abracon LLC |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
