The 0402 Resistor: A Comprehensive Guide

In today’s rapidly evolving world of electronics, 0402 resistor helps miniaturize . Devices are getting smaller, faster, more efficient and saving of PCB space.

Despite its small size, the 0402 resistor plays a significant role in modern electronics.  Appearing in everything from smartphones to medical devices, automotive electronics, and IoT devices.

In this blog, we will know various aspects of the 0402 resistor.  Including its dimensions, power rating, footprint, values, tolerance, packaging types, and more.

0402 resistor No Marking

Table of Contents

1.    What is an 0402 Resistor?

2.    0402 Resistor Dimensions

3.    0402 Resistor Power Rating

4.    0402 Resistor Footprint

5.    0402 Resistor Values

6.    0402 Resistor Tolerance

7.    0402 Resistors Packaging Type

8.    Applications of 0402 Resistors

9.    Frequently Asked Questions (FAQs)

10.   Conclusion

1. What is an 0402 Resistor?

The 0402 resistor is one of the most common surface-mount resistors used in modern electronic circuits. The "0402" is the size of measurement in inches.   Specifically, the 0402 resistor is 0.04 inches long and 0.02 inches wide (or 1.0 mm x 0.5 mm), making it an extremely small component.

Despite its tiny size, offers excellent performance. Use in applications where  space is a premium .

Why Is It Called "0402"?

The name "0402" follows the standard naming convention for surface-mount components. The first two digits (04) indicate the length of the component in hundredths of an inch (0.04 inches).  The last two digits (02) represent the width of the component in hundredths of an inch (0.02 inches).

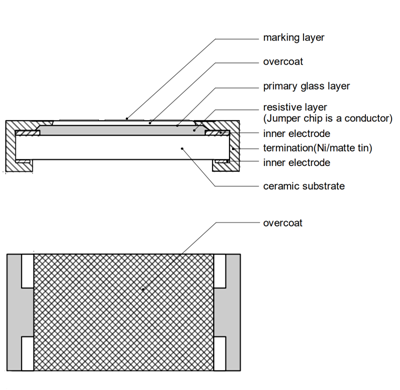

Construction

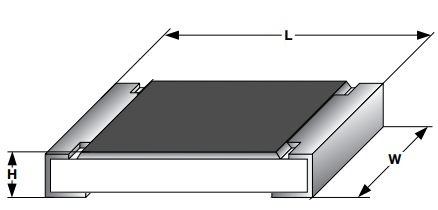

2. 0402 Resistor Dimensions

The exact dimensions of an 0402 resistor are as follows:

• Length:      1.0 mm (0.04 inches)

• Width:      0.5 mm (0.02 inches)

• Height:      Typically, 0.3 mm (0.012 inches)



These dimensions make the 0402 resistor one of the smallest surface-mount devices available. The tiny size of the resistor enables manufacturers to use them in compact, densely packed PCBs (Printed Circuit Boards). Such as those found in smartphones, wearables, and other portable electronic devices.

While the 0402 size is standard . The actual height of the resistor may vary slightly. Depending on the manufacturer and the specific design of the resistor.   For instance, thick-film resistors and thin-film resistors may have different height profiles.

3.0402 Resistor Power Rating

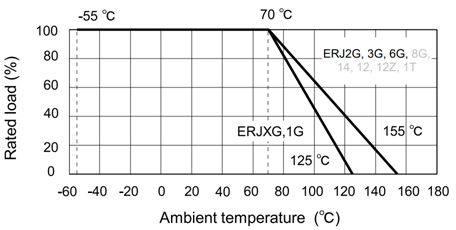

Above 70 ℃, power rating shall be derated in accordance with the figure below.

The power rating of a resistor refers to the maximum amount of power. Can safely dissipate without overheating or damaged. Typically range from 0.063 watts (63 milliwatts) to 0.1 watts (100 milliwatts).

Given the small size of the 0402 resistor, the power rating is relatively low compared to larger resistors. However, the low power rating doesn’t diminish its utility in specific applications. Many modern devices, especially those with energy-efficient designs, require components that consume little power. Therefore, use the 0402 resistor in circuits with low voltage and low current.

Thermal Considerations

Because its small size, the 0402 resistor’s ability to dissipate heat is limited. If the power dissipated exceeds the resistor’s rating, it could overheat and fail.

For this reason, engineers must carefully design circuits with 0402 resistors. To ensure that they do not exceed the power rating. Also essential to consider the resistor's environment. As temperature variations can affect the performance and longevity of the resistor.

4. 0402 Resistor Footprint

The footprint of a resistor refers to the area of the PCB that the resistor occupies. For the 0402 resistor, the footprint directly relate to its physical dimensions. A typical 0402 footprint on a PCB is approximately:

• Length:      1.2 mm

• Width:      0.65 mm

• Pad      Size:      0.5 mm (to 0.6 mm)

When designing a PCB with 0402 resistors, it’s crucial to maintain the correct footprint. If the footprint is too large or too small, the resistor may not solder properly to the pads. Leading to poor connections or even component failure.

The precision required for the footprint. This is one of the reasons why manufacturers use automated pick-and-place machines for assembly.

5. 0402 Resistor Values

0402 resistors come in a wide range of resistance values, usually following the E12 or E24 standard series. The most commonly used resistance values for 0402 resistors typically fall within the range of 1 ohm to 10 MΩ. Though values outside this range are also available.

Standard Value Series

• E12      series: This series includes values like 1.0, 1.2,      1.5, 1.8, 2.2, 2.7, 3.3, 3.9, and so on, with a tolerance of ±10%.

• E24      series: More precise values are available in this      series, offering a tolerance of ±5% or even ±1%. Values 1.0, 1.1, 1.2,      1.3, 1.4, etc., are available in this series.

Choosing the right resistance value is essential for the correct functioning of the circuit. The value of the resistor determines the current flow and, therefore, influences the overall behavior of the circuit.

6. 0402 Resistor Tolerance

Resistor tolerance refers to the allowable deviation from the nominal resistance value. For example, a 100 ohm resistor with a tolerance of ±5% can vary anywhere between 95 ohms and 105 ohms.

0402 resistors come with various tolerance ratings:

• ±1%      tolerance: Used for precision applications where a      higher degree of accuracy is required.

• ±5%      tolerance: Common for general-purpose applications,      where absolute precision is less critical.

• ±10%      tolerance: Less common but still available, typically      used for non-critical applications.

Resistor tolerance is a key factor when selecting the right 0402 resistor. High-precision circuits require tighter tolerance ratings (±1% or ±2%).  Such as in medical devices or high-performance consumer electronics.

7. Packaging Types for 0402 Resistors

Come in different packaging types to suit various manufacturing and handling needs. These include:

1. Paper Taping Reel Embossed

This packaging method involves placing resistors in a continuous tape that is wound around a reel.  Place  resistors  in embossed pockets in the tape.  Paper taping is a cost-effective method of packaging for large-volume production.

2. Taping Reel ESD (Electrostatic Discharge)

In environments where there’s a high risk of electrostatic discharge. Package resistors in tapes that offer electrostatic protection. This ensures that the resistors are safe from static electricity that could damage sensitive components.

3. Safe Reel (0075/0100 only)

For smaller reel sizes (0075 or 0100), can use a “safe reel” package.  These reels offer additional protection for the resistors, reducing the risk of damage during transportation and handling. Safe reels are particularly useful for small-batch production and prototypes.

8. Applications of 0402 Resistors

The small size of it makes it ideal for a wide range of applications, including:

• Smartphones      and Wearables: These devices require miniature      components to maintain a compact form factor. And it commonly use in these      products.

• Medical      Devices: Precision and small size are essential in      medical equipment. Can find it in devices like pacemakers and diagnostic      tools.

• Automotive      Electronics: The automotive industry uses 0402 resistors      in sensors, control units, and communication systems.

• IoT      Devices:  IoT      (Internet of Things) devices demand tiny, low-power components like these      resistors. Making them perfect for these applications.

9. Frequently Asked Questions (FAQs)

1. What is the power rating of an 0402 resistor?

The typical power rating for an 0402 resistor is between 0.063 watts (63 milliwatts) and 0.1 watts (100 milliwatts). Depending on the manufacturer and specific resistor model. This low power rating makes it suitable for low-voltage and low-current applications.

2. How do I choose the right resistor value for my circuit?

Need to consider the required current and voltage in your circuit, as well as the desired resistance. You can use Ohm’s law (V = IR) to calculate the necessary resistance for a given voltage and current. You also need to factor in the tolerance and power rating for the resistor.

3. Can I use 0402 resistors in high-power applications?

Because their small size and low power rating, 0402 resistors are not ideal for high-power applications. If your circuit requires resistors that dissipate a significant amount of power. You should consider using larger resistors with higher power ratings.

10. Conclusion

The 0402 resistor is a small but crucial component in modern electronics. Its compact size, coupled with a wide range of resistor values, tolerances, and packaging options. Makes it suitable for a variety of applications, from consumer electronics to medical devices and automotive systems.

When designing a circuit, it’s essential to understand the various properties of the 0402 resistor. Such as its dimensions, power rating, footprint, and packaging options, to ensure reliable and efficient performance.

By choosing the right 0402 resistor and considering factors like power dissipation and tolerance. You can create efficient, high-performance electronic designs that meet the needs of today’s miniaturized world.
