Product CatalogPart Number
AZSR250-2AE-24D
Manufacturer
American ZettlerDescription
RELAY EV CHG SOLAR DPST 55A 24V
Datasheet
DatasheetPackage
-
In Stock
82,533 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
AZSR250-2AE-24D
AZSR250-2AE-24D
lmages are for reference only.Payment Methods
Delivery Services
EV Charging, Solar Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
Quick Inquiry
AZSR250-2AE-24D
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | American Zettler |
| Series | AZSR250 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 55 A |
| Switching Voltage | 440VAC, 150VDC - Max |
| Load - Max Switching | 13850VA 1500W |
| Coil Current | 20 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 40 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, VDE |
| Relay Type | EV Charging, Solar |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.2 kOhms |
| Base Product Number | AZSR250 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

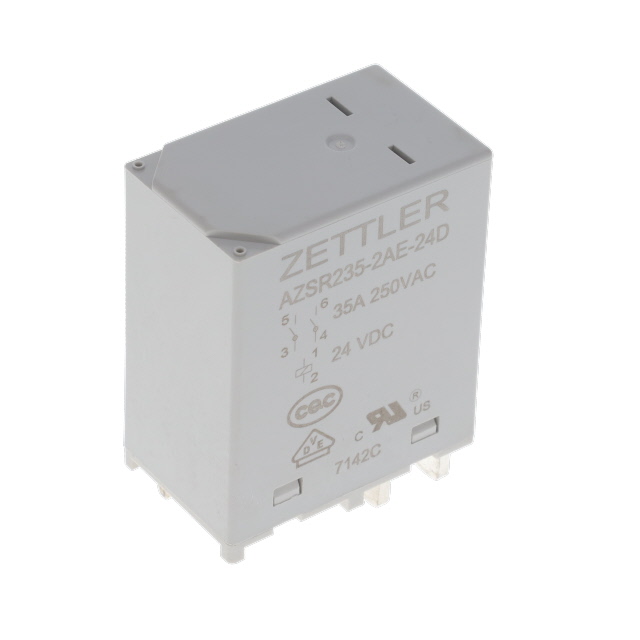

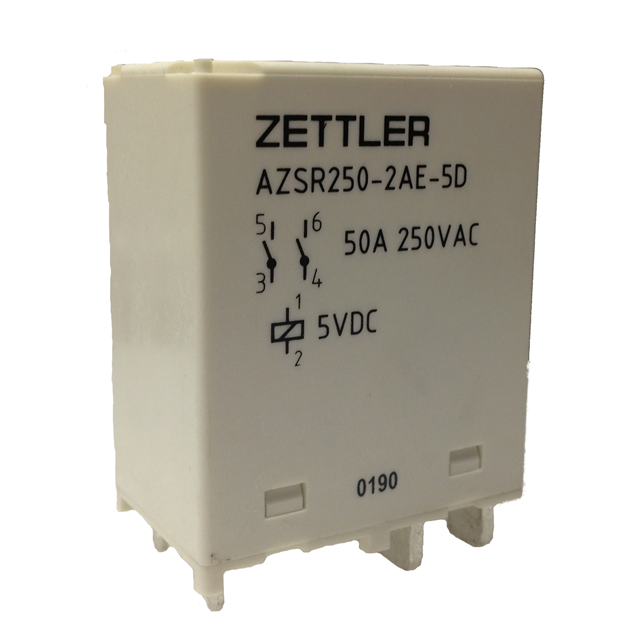

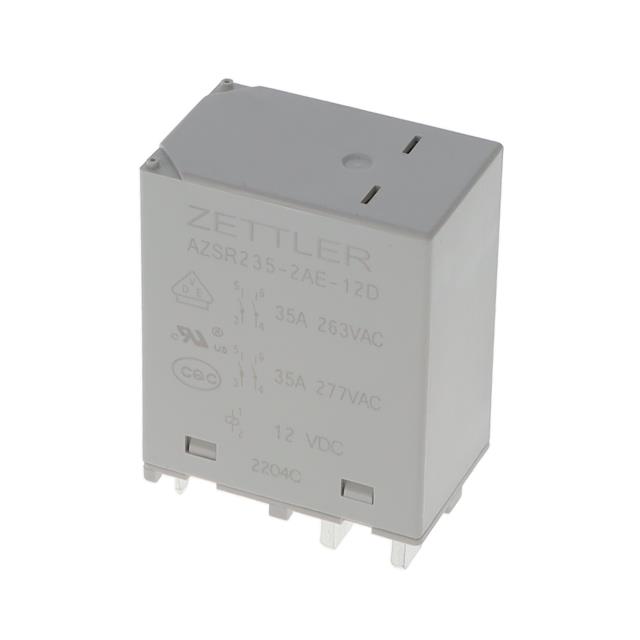

| Part Number | AZSR250-2AE-12D | AZSR235-2AE-12D | AZSR235-2AE-24D | AZSR250-1AE-12D |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY EV CHG SOLAR DPST 55A 12V | RELAY EV CHG SOLAR DPST 35A 12V | RELAY EV CHG SOLAR DPST 35A 24V | RELAY EV CHG SOLAR SPST 55A 12V |
| Series | American Zettler | American Zettler | American Zettler | American Zettler |
| Packaging | Box | Box | Tray | Tube |
