Product CatalogPart Number
B78148S1333K000
Manufacturer
EPCOS - TDK ElectronicsDescription
HF CHOKE 33,0 UH
Datasheet
DatasheetPackage
Axial
In Stock
91,599 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
B78148S1333K000
B78148S1333K000

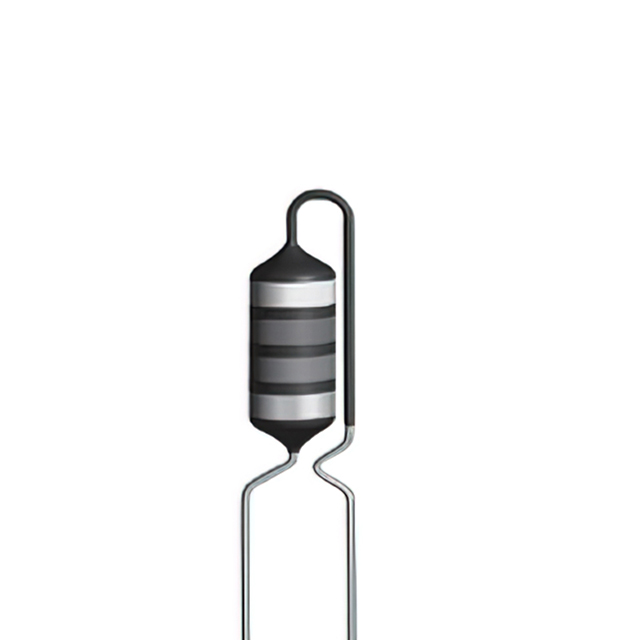

lmages are for reference only.Payment Methods
Delivery Services
33 µH Unshielded Wirewound Inductor 500 mA 920mOhm Max Axial
Quick Inquiry
B78148S1333K000
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B78148S1 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 920mOhm Max |
| Q @ Freq | 55 @ 2.52MHz |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Supplier Device Package | Axial |
| Size / Dimension | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) |
| Height - Seated (Max) | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | B78148S1333K009 | B78148S1332J000 | B78148S1332K000 | B78148S1332K009 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 33UH 500MA 920 MOHM TH | FIXED IND 3.3UH 900MA 290MOHM TH | HF CHOKE | FIXED IND 3.3UH 900MA 290 MOHM |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Box (TB) |
