B82442H1106K000
lmages are for reference only.B82442H1106K000
FIXED IND 10MH 35MA 120 OHM SMD
Datasheet2-SMD, J-Lead
37,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 mH Unshielded Drum Core, Wirewound Inductor 35 mA 120Ohm Max 2-SMD, J-Lead
B82442H1106K000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 35 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120Ohm Max |
| Q @ Freq | 30 @ 79.6kHz |
| Frequency - Self Resonant | 500kHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 79.6 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | 2220 (5650 Metric) |
| Size / Dimension | 0.220" L x 0.197" W (5.60mm x 5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

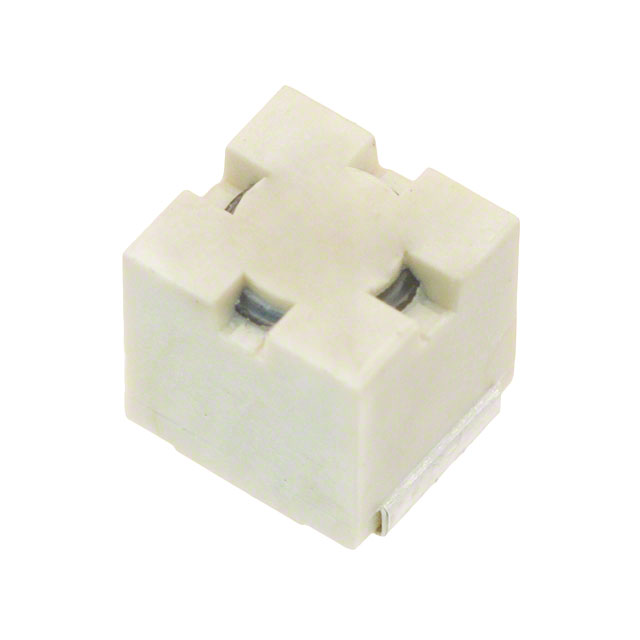

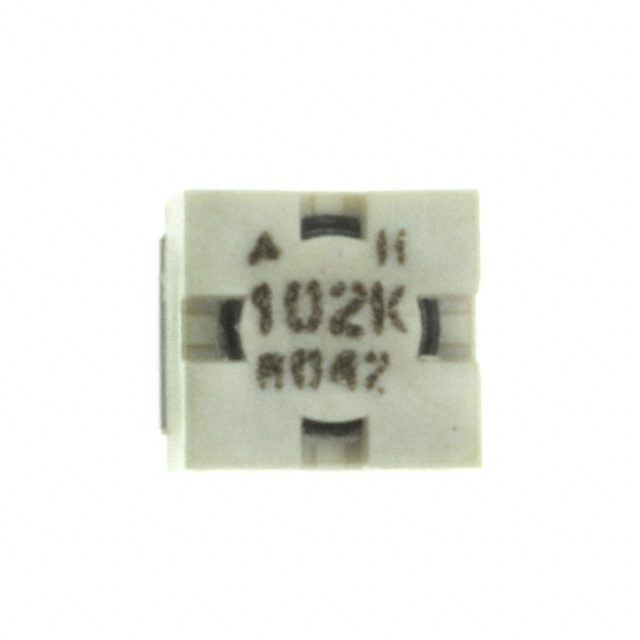

| Part Number | B82442H1102K000 | B82442H1102K000 | B82442H1103K000 | B82442H1104J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 2.5A 24 MOHM SMD | FIXED IND 1UH 2.5A 24 MOHM SMD | FIXED IND 10UH 1A 168 MOHM SMD | FIXED IND 100UH 350MA 1.28OHM SM |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
