DEA101990LT-6302B1

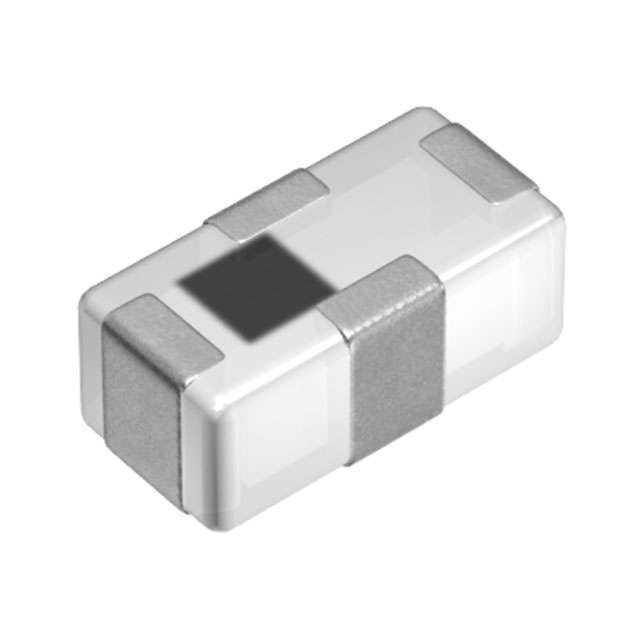

lmages are for reference only.DEA101990LT-6302B1
MULTILAYER LPF FOR 2400-2500MHZ
Datasheet0402 (1005 Metric), 4 PC Pad
32,679 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.85GHz Center Frequency Low Pass RF Filter (Radio Frequency) 280MHz Bandwidth 0.6dB 0402 (1005 Metric), 4 PC Pad
DEA101990LT-6302B1
| Category | Filters - RF Filters - |
| Manufacturer | TDK Corporation |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Frequency | 1.85GHz Center |
| Bandwidth | 280MHz |
| Filter Type | Low Pass |
| Ripple | - |
| Insertion Loss | 0.6dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric), 4 PC Pad |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height (Max) | 0.018" (0.45mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

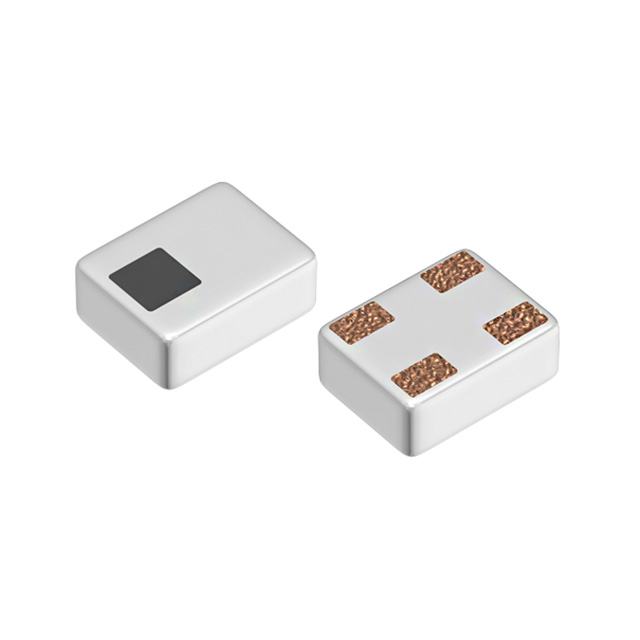

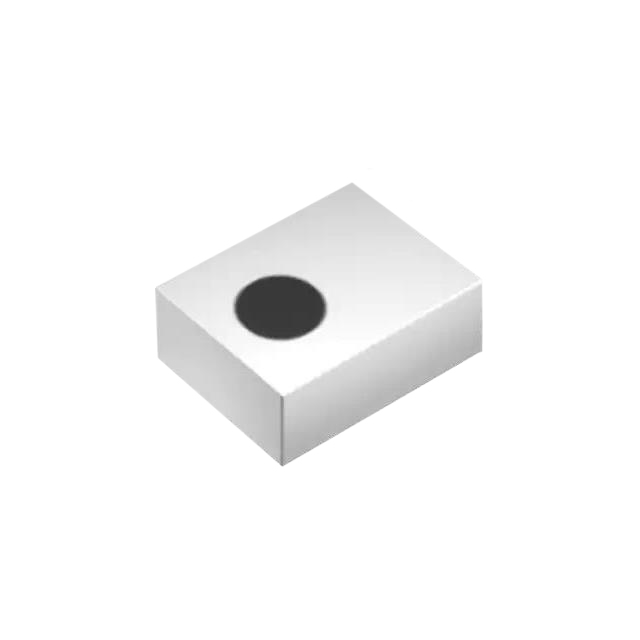

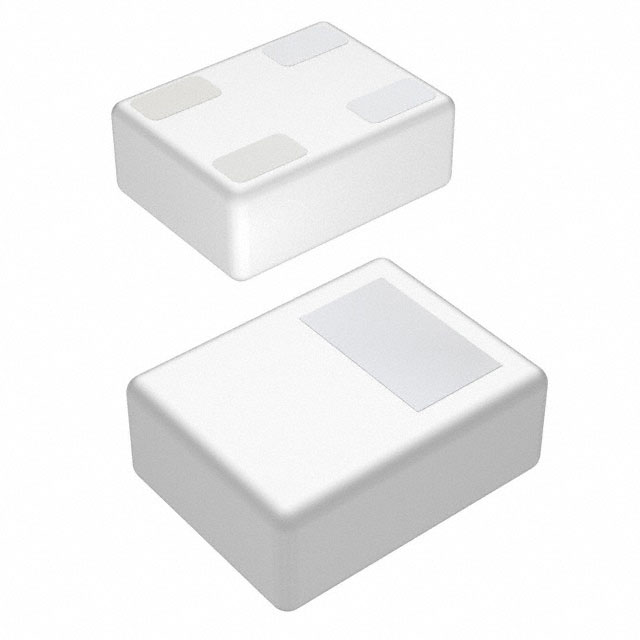

| Part Number | DEA070787LT-4002A1 | DEA070960LT-4006B1 | DEA071910LT-4003B1 | DEA075150HT-8036A1 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF FILTER LOW PASS 782MHZ 0202 | RF FILTER LOW PASS 892MHZ 0202 | RF FILTER LOW PASS 1.81GHZ 0202 | RF FILTER HIGH PASS 5GHZ 0202 |
| Series | DEA | DEA | DEA | DEA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
