Product CatalogPart Number
XGL4020-111MEC
Manufacturer
CoilcraftDescription
FIXED IND 110NH 29A 1.7MOHM SMD
Datasheet
DatasheetPackage
1616 (4040 Metric)
In Stock
59,544 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
XGL4020-111MEC
XGL4020-111MEC

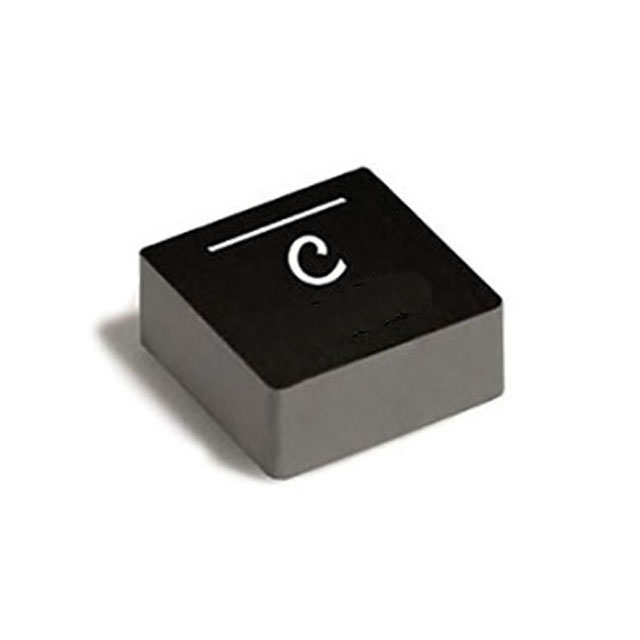

lmages are for reference only.Payment Methods
Delivery Services
110 nH Shielded Molded Inductor 29 A 1.7mOhm Max 1616 (4040 Metric)
Quick Inquiry
XGL4020-111MEC
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Coilcraft |
| Series | XGL4020 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Metal Composite |
| Inductance | 110 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 29 A |
| Current - Saturation (Isat) | 29A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 250MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 165°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | XGL4020-102MEC | XGL4020-152MEC | XGL4020-222MEC | XGL4020-251MEC |
| Manufacturer | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 12A 9 MOHM SMD | FIXED IND 1.5UH 11.1A 14.3 MOHM | FIXED IND 2.2UH 8.9A 21.5MOHM SM | FIXED IND 250NH 24A 3 MOHM SMD |
| Series | Coilcraft | Coilcraft | Coilcraft | Coilcraft |
| Packaging | Strip | Strip | Strip | Strip |
Customers Also Interested in
Recommended Products
XGL4012-101MEC
Coilcraft
XGL4012-102MEC
Coilcraft
XGL4012-122MEC
Coilcraft
XGL4012-221MEC
Coilcraft
XGL4012-381MEC
Coilcraft
XGL4012-451MEC
Coilcraft
XGL4012-601MEC
Coilcraft
XGL4015-101MEC
Coilcraft
XGL4015-102MEC
Coilcraft
XGL4015-121MEC
Coilcraft

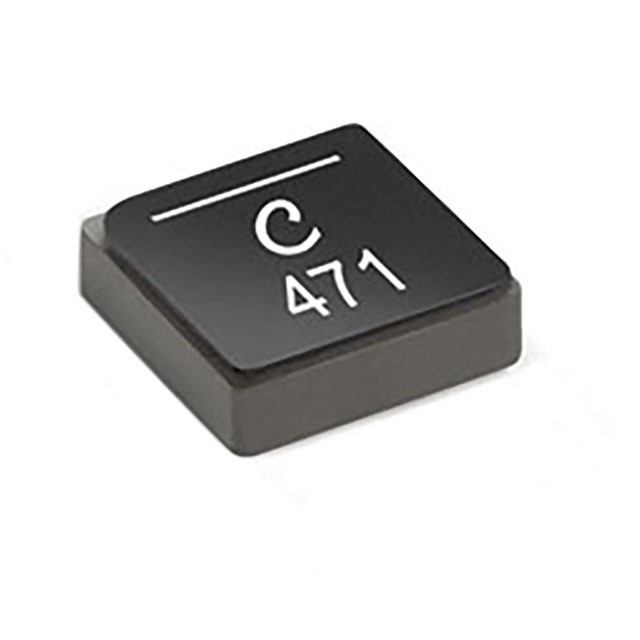

XGL4015-152MEC
