AWSCR-10.00CV-T

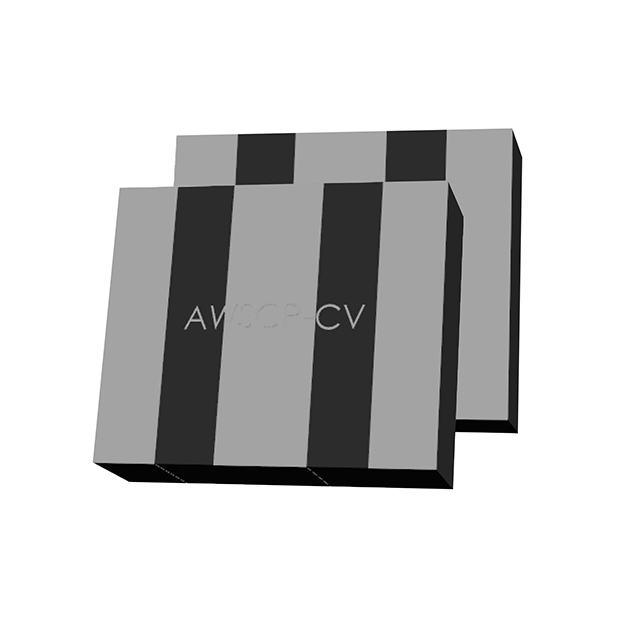

lmages are for reference only.AWSCR-10.00CV-T
CERAMIC RES 10.0000MHZ 22PF SMD
Datasheet3-SMD, Non-Standard
34,379 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz Ceramic Resonator Built in Capacitor 22 pF ±0.4% 30 Ohms -25°C ~ 85°C Surface Mount
AWSCR-10.00CV-T
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Abracon LLC |
| Series | AWSCR-CV |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 10 MHz |
| Frequency Stability | ±0.4% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 22 pF |
| Impedance | 30 Ohms |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension | 0.146" L x 0.122" W (3.70mm x 3.10mm) |
| Height | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AWSCR-10.00CELA-C10-T3 | AWSCR-10.00CELA-C33-T3 | AWSCR-10.00CELB-C10-T3 | AWSCR-10.00CELB-C33-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 10.0000MHZ 10PF SMD | CERAMIC RES 10.0000MHZ 33PF SMD | CERAMIC RES 10.0000MHZ 10PF SMD | CERAMIC RES 10.0000MHZ 33PF SMD |
| Series | AWSCR-CELA | AWSCR-CELA | AWSCR-CELB | AWSCR-CELB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
