B32916A3475K000

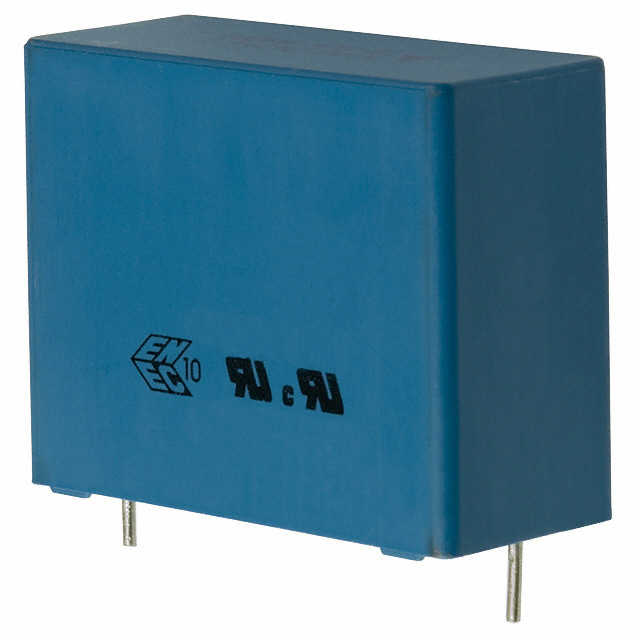

lmages are for reference only.B32916A3475K000
CAP FILM 4.7UF 10% 760VDC RADIAL
DatasheetRadial
93,408 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µF Film Capacitor 330V 760V Polypropylene (PP), Metallized Radial
B32916A3475K000
| Category | Capacitors - Film Capacitors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B3291*A/B3 - X1 Standard |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 4.7 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 330V |
| Voltage Rating - DC | 760V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Height - Seated (Max) | 1.555" (39.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | EMI, RFI Suppression |
| Ratings | X1 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B32916A3475M000 | B32911A3103K000 | B32911A3103K189 | B32911A3103K289 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 4.7UF 20% 760VDC RADIAL | CAP FILM 10000PF 10% 760VDC RAD | CAP FILM 10000PF 10% 760VDC RAD | CAP FILM 10000PF 10% 760VDC RAD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Box (TB) |
