1206L020/30YR

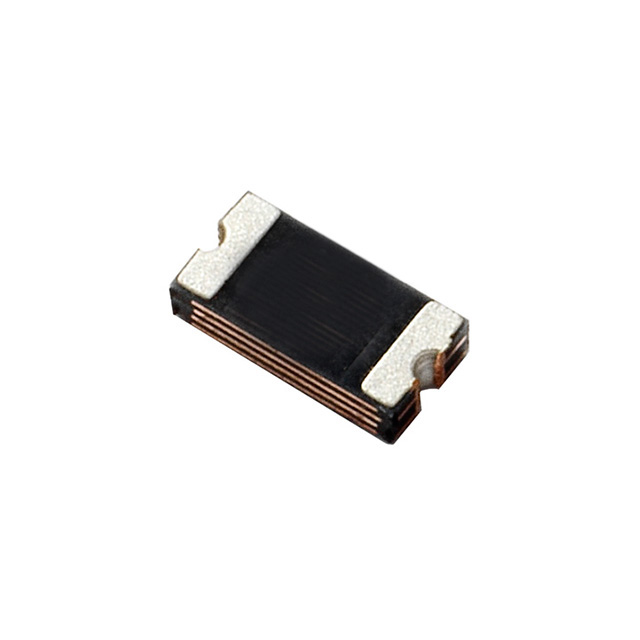

lmages are for reference only.1206L020/30YR
PTC RESET FUSE 30V 20MA 1206
Datasheet1206 (3216 Metric), Concave
52,831 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1206 (3216 Metric), Concave
1206L020/30YR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, 1206L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 30V |
| Current - Hold (Ih) (Max) | 200 mA |
| Current - Trip (It) | 420 mA |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.039" (1.00mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 650 mOhms |
| Resistance - Post Trip (R1) (Max) | 2.6 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | 1206L020/30YR-A | 1206L020YR | 1206L025/24YR | 1206L025YR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PTC 30V POLYFUSE SURF MOUNT 1206 | PTC RESET FUSE 24V 200MA 1206 | PTC RESET FUSE 24V 250MA 1206 | PTC RESET FUSE 16V 250MA 1206 |
| Series | POLY-FUSE®, 1206L | POLY-FUSE®, 1206L | POLY-FUSE®, 1206L | POLY-FUSE®, 1206L |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
