1206L050/15YR
lmages are for reference only.1206L050/15YR
PTC RESET FUSE 15V 500MA 1206
Datasheet1206 (3216 Metric), Concave
28,485 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 15V 500 mA Ih Surface Mount 1206 (3216 Metric), Concave
1206L050/15YR
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POLY-FUSE®, 1206L |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 750 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

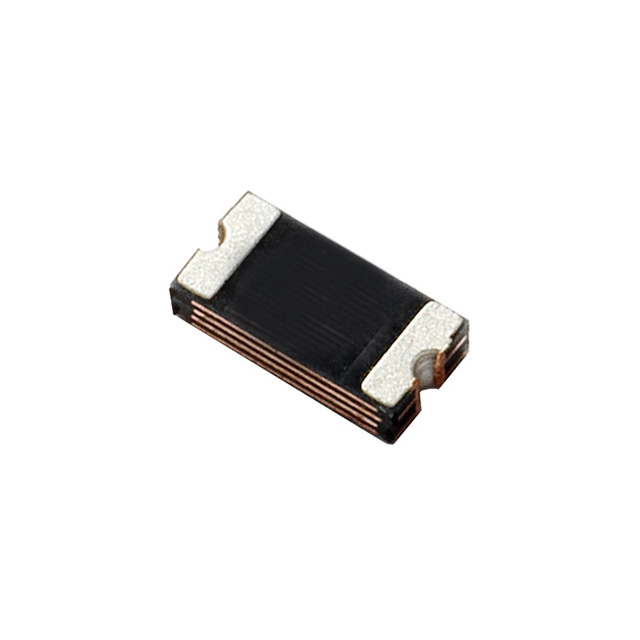

| Part Number | 1206L050/24WR | 1206L050YR | 1206L300SLTHYR | 1206L400SL-SYR |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 24V 500MA 1206 | PTC RESET FUSE 6V 500MA 1206 | PTC RESET FUSE 6V 3A 1206 | PTC RESET FUSE 6V 4A 1206 |
| Series | POLY-FUSE®, 1206L | POLY-FUSE®, 1206L | POLY-FUSE®, LoRho | LoRho Surface Mount |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) |
