AWSCR-8.00CPLA-C30-T4

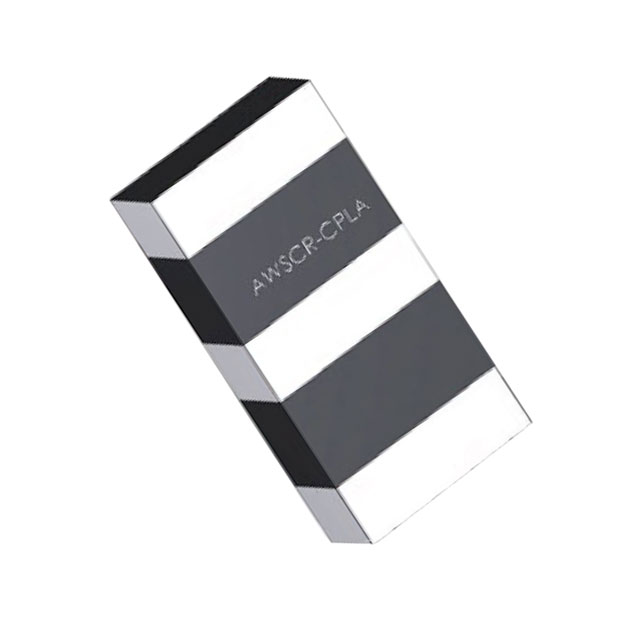

lmages are for reference only.AWSCR-8.00CPLA-C30-T4
CERAMIC RES 8.0000MHZ 30PF SMD
Datasheet3-SMD, Non-Standard
89,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
8 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 30 Ohms -40°C ~ 85°C Surface Mount
AWSCR-8.00CPLA-C30-T4
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Abracon LLC |
| Series | AWSCR-CPLA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Ceramic |
| Frequency | 8 MHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 30 pF |
| Impedance | 30 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension | 0.236" L x 0.118" W (6.00mm x 3.00mm) |
| Height | 0.059" (1.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AWSCR-8.00CPLA-C15-T4 | AWSCR-8.00CPLA-C33-T4 | AWSCR-8.00CPLA-C47-T4 | AWSCR-8.00CELA-C10-T3 |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 8.0000MHZ 15PF SMD | CERAMIC RES 8.0000MHZ 33PF SMD | CERAMIC RES 8.0000MHZ 47PF SMD | CERAMIC RES 8.0000MHZ 10PF SMD |
| Series | AWSCR-CPLA | AWSCR-CPLA | AWSCR-CPLA | AWSCR-CELA |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
